MOLEX
0532614006

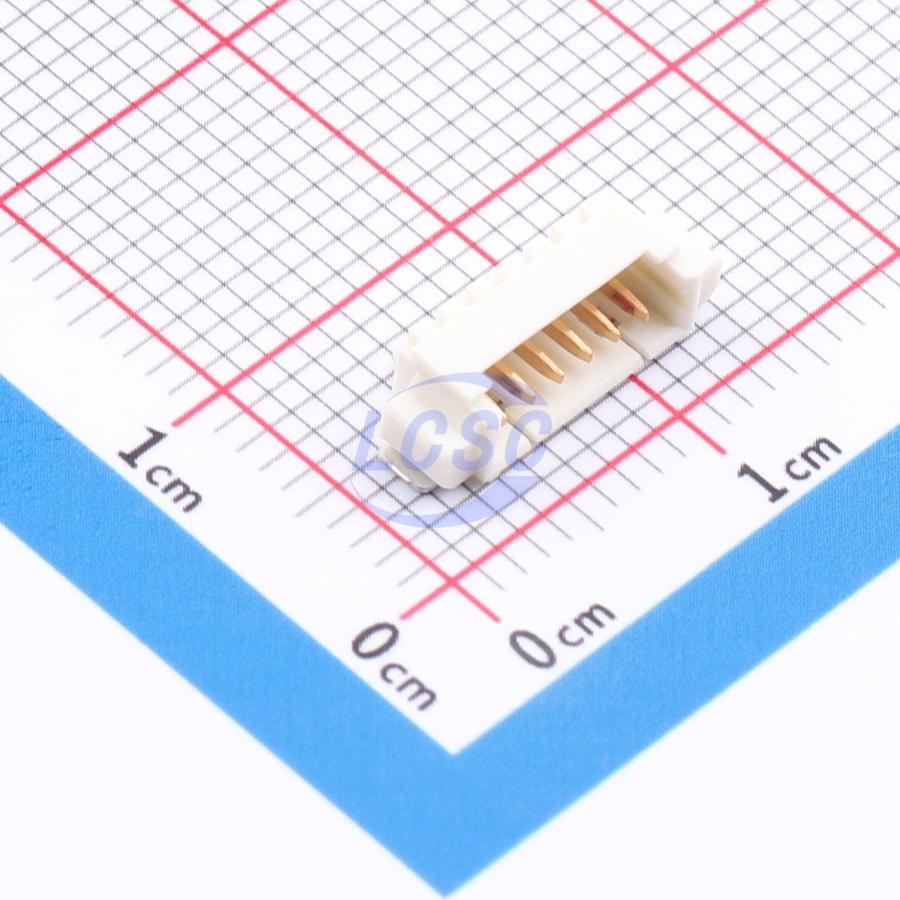

Connector Header 6 position 1.25mm Pitch 1A Surface Mount, Right Angle -40℃~+105℃
SMDROHS3 CompliantActive
CONN HEADER SMD R/A 6POS 1.25mm
- Manufacturer
- MOLEX
- Manufacturer part #
- 0532614006
- Store part #
- C17613190
- Package / case
- SMD
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C17613190
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.66 | ₹212.66 |
| 10+ | ₹177.68 | ₹1,776.80 |
| 30+ | ₹158.47 | ₹4,754.10 |
| 100+ | ₹136.88 | ₹13,688.00 |
| 500+ | ₹127.17 | ₹63,585.00 |
| 1,000+ | ₹122.84 | ₹1,22,840.00 |
1 × ₹212.66
₹212.66
excl. GST
₹250.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
0532614006
₹212.66 for 1 + GST
Specifications
- Connector Type
- Surface Mount, Right Angle
- Reference Series
- PicoBlade(MX 1.25)
- Voltage Rating (Max)
- 125V
- Contact Material
- Phosphor bronze
- Number of PINs Per Row
- 6
- Number of Rows
- 1
- Pitch
- 1.25mm
- Current Rating
- 1A
- Flame Retardant Rating
- UL94V-0
- Supplementary Features
- Auxiliary Solder Pin
- Number of PINs
- 6P
- Contact Plating
- Gold
- Operating Temperature
- -40℃~+105℃
- Plastic Material
- Glass fiber reinforced PA
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 12.65mm
- Pin Structure
- 1x6P
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.477 g
