0805W8F1001T5E

Yes, this component strictly follows standard 0805 (2012 metric) footprint dimensions, making it fully compatible with automated SMT pick-and-place machines and standard PCB land patterns. It seamlessly integrates into automated reflow soldering assembly processes, ensuring reliable solder joints and high-density PCB mounting across standard commercial and industrial manufacturing workflows.

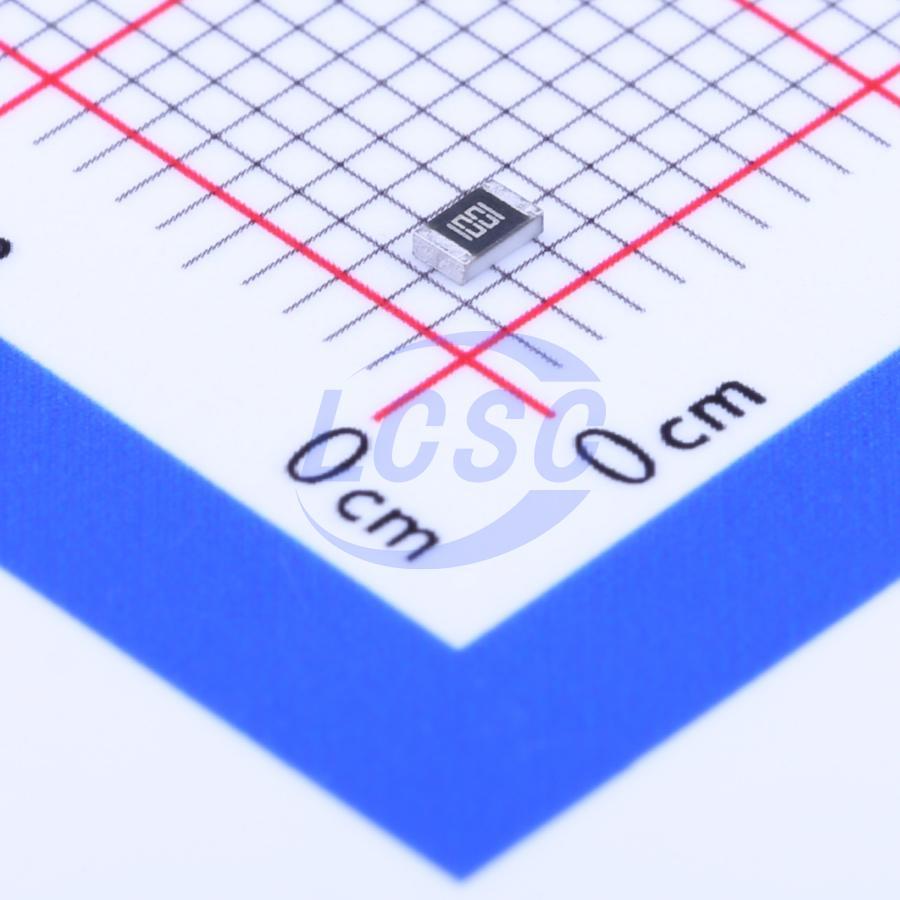

This UNI-ROYAL thick film chip resistor features a 1kΩ resistance with ±1% tolerance, 125mW (1/8W) power rating, and a 150V maximum operating voltage. It comes in a standard 0805 surface-mount package and operates reliably within a wide temperature range from -55°C to +155°C.

Ensure your PCB pad design matches standard 0805 footprint specifications and apply lead-free or leaded solder paste evenly. Follow standard reflow temperature profiles within the maximum operating range of +155°C peak limits. Store unsealed reels in moisture-controlled environments to maintain optimal terminal solderability and prevent component tombstoning during automated reflow.

This 1kΩ surface-mount resistor is ideal for general-purpose electronic circuits, including LED current limiting, pull-up or pull-down resistor networks, signal conditioning, and voltage divider circuits. Its compact 0805 footprint makes it widely applicable in consumer electronics, automotive modules, power supplies, telecom equipment, and industrial automation control systems.

To select a replacement, choose any 0805 surface-mount thick film resistor with a 1kΩ resistance value, ±1% tolerance rating, and minimum 125mW power handling capabilities. Ensure the temperature coefficient matches ±100ppm/°C and the operating voltage meets or exceeds 150V to maintain complete circuit compatibility without design modifications.
