JSCJDatasheet (PDF)

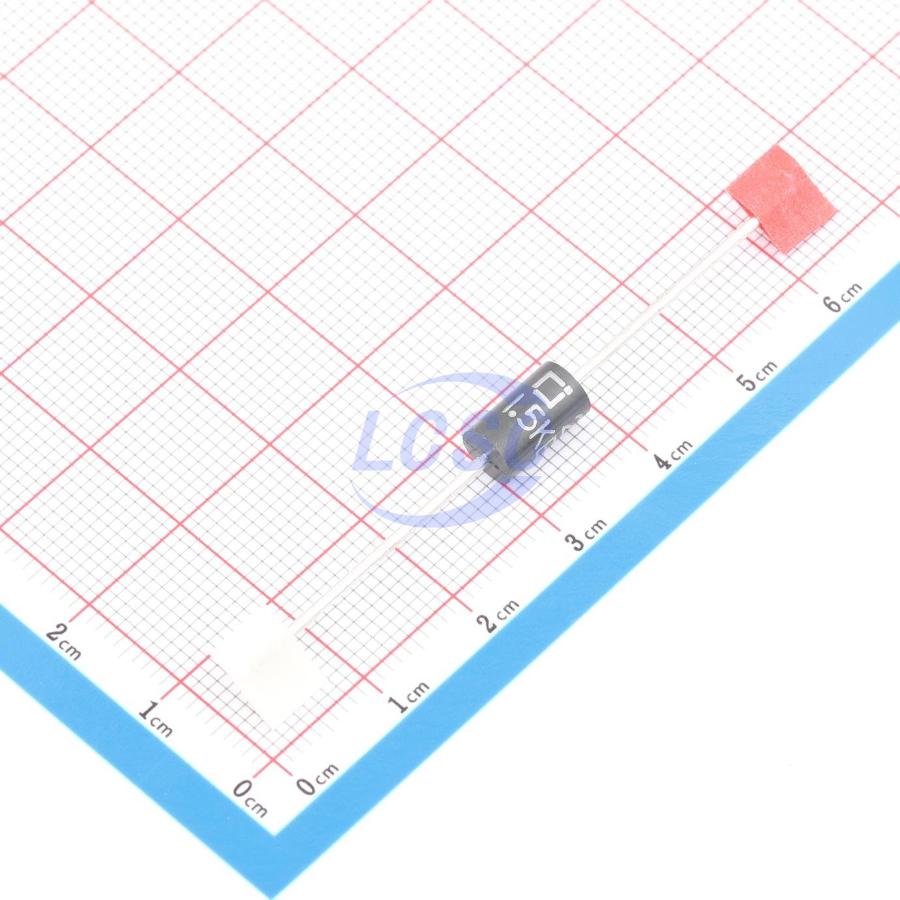

1.5KE18CA
25.2VC Clamp 59.5A Ipp TVS DIODE DO-27
DO-27ROHS CompliantActive
- Manufacturer
- JSCJ
- Manufacturer part #
- 1.5KE18CA
- Store part #
- C5295277
- Package / case
- DO-27
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
865 in stock
#C5295277
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.60 | ₹153.00 |
| 50+ | ₹23.96 | ₹1,198.00 |
| 150+ | ₹21.12 | ₹3,168.00 |
| 1,200+ | ₹17.56 | ₹21,072.00 |
| 2,400+ | ₹15.98 | ₹38,352.00 |
| 4,800+ | ₹15.03 | ₹72,144.00 |
5 × ₹30.60
₹153.00
excl. GST
₹180.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,200 per reel
1.5KE18CA
₹153.00 for 5 + GST
Specifications
- Clamping Voltage
- 25.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 59.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 18.9V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.233 g
