VISHAYDatasheet (PDF)

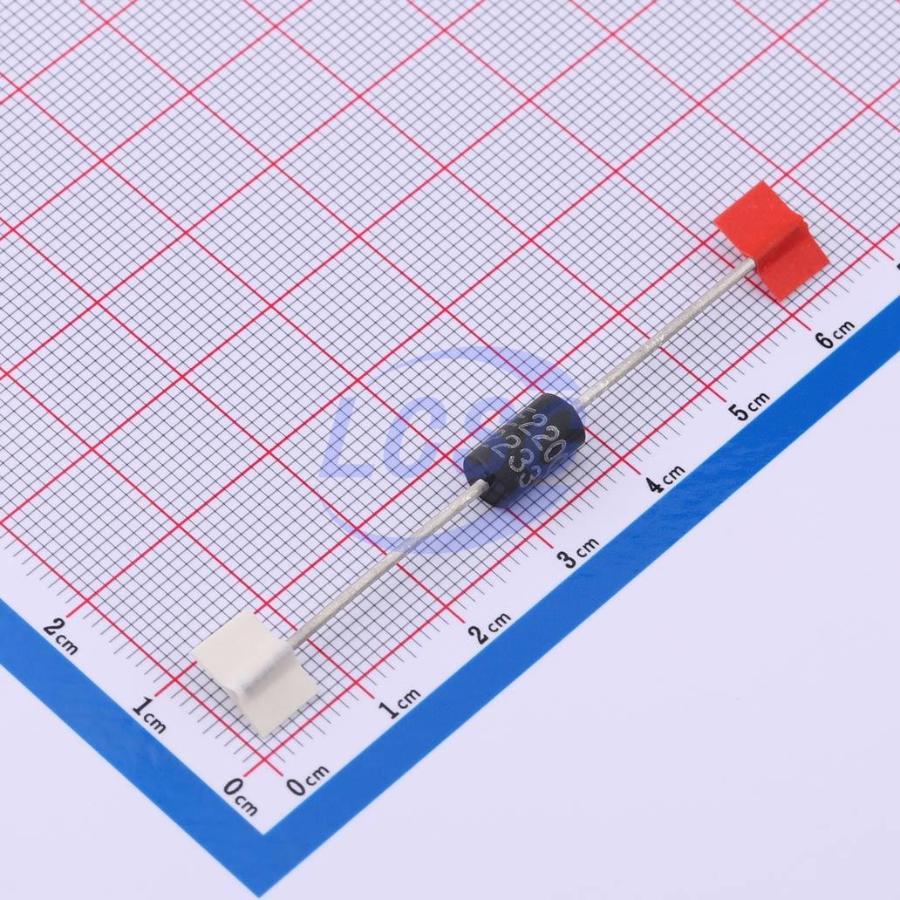

1.5KE220CA-E3/54
328VC Clamp 4.6A@10/1000us Ipp TVS DIODE DO-27
DO-27Active
TVS DIODE 185VWM 328VC DO-27
- Manufacturer
- VISHAY
- Manufacturer part #
- 1.5KE220CA-E3/54
- Store part #
- C1973286
- Package / case
- DO-27
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C1973286
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.76 | ₹86.76 |
| 10+ | ₹70.71 | ₹707.10 |
| 30+ | ₹62.70 | ₹1,881.00 |
| 100+ | ₹54.68 | ₹5,468.00 |
| 500+ | ₹50.04 | ₹25,020.00 |
| 1,400+ | ₹47.50 | ₹66,500.00 |
1 × ₹86.76
₹86.76
excl. GST
₹102.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,400 per reel
1.5KE220CA-E3/54
₹86.76 for 1 + GST
Specifications
- Clamping Voltage
- 328V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 4.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 231V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 185V
Packaging & compliance
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,400 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.34 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Glass passivated chip junction
- Available in unidirectional and bidirectional
- 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- AEC-Q101 qualified available
- Solder dip 275℃ max. 10 s, per JESD 22-B106
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5KE22CA-E3/54#C1849744VISHAY · DO-201 | VISHAY | DO-201 | 132 | ₹143.37 · 132 in stock | View |
 | 1.5KE220CA#C1973398Littelfuse · DO-201 | Littelfuse | DO-201 | 40 | ₹55.86 · 40 in stock | View |
 | 1.5KE220CA#C730062Brightking · DO-201 | Brightking | DO-201 | 395 | ₹22.90 · 395 in stock | View |
 | 1.5KE220CA#C294183DOWO · DO-201 | DOWO | DO-201 | 2,785 | ₹23.46 · 2,785 in stock | View |
 | 1.5KE220CA#C3717767ST · DO-201 | ST | DO-201 | 232 | ₹124.31 · 232 in stock | View |
