LittelfuseDatasheet (PDF)

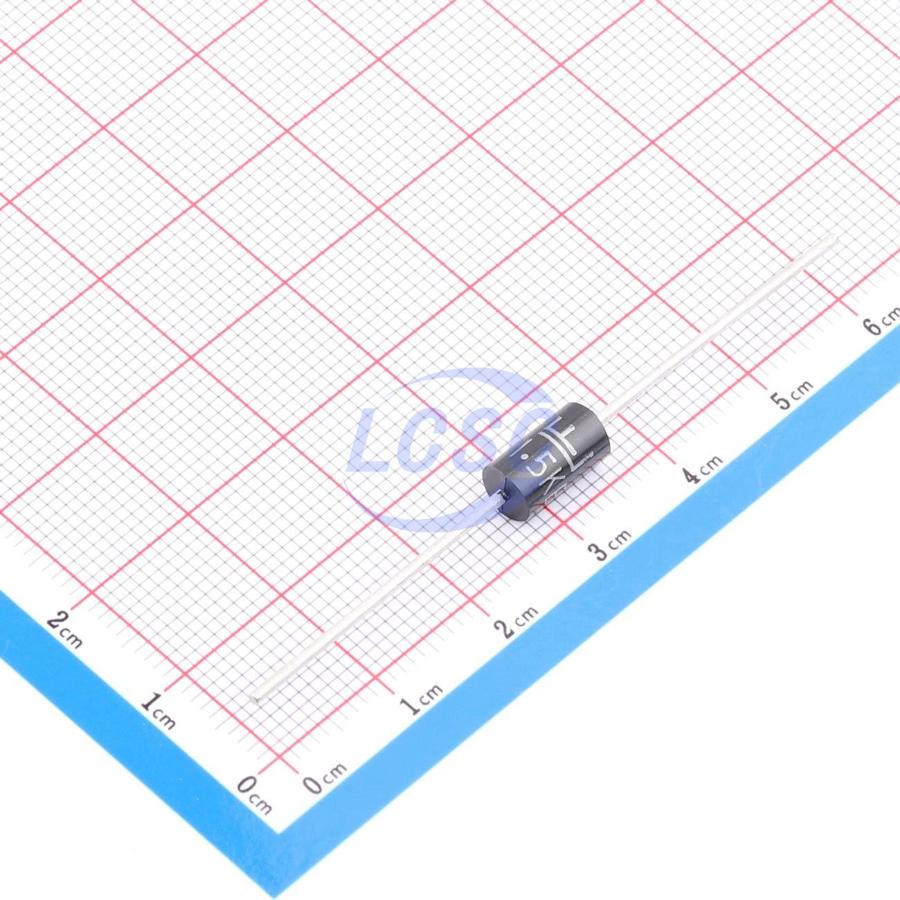

1.5KE22CA-B
30.6VC Clamp 49.7A Ipp TVS DIODE DO-201
DO-201ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5KE22CA-B
- Store part #
- C3719113
- Package / case
- DO-201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C3719113
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.30 | ₹86.30 |
| 10+ | ₹69.81 | ₹698.10 |
| 30+ | ₹61.80 | ₹1,854.00 |
| 100+ | ₹53.56 | ₹5,356.00 |
1 × ₹86.30
₹86.30
excl. GST
₹101.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per box
1.5KE22CA-B
₹86.30 for 1 + GST
Specifications
- Clamping Voltage
- 30.6V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 49.7A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 20.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 18.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.026 g
