LittelfuseDatasheet (PDF)

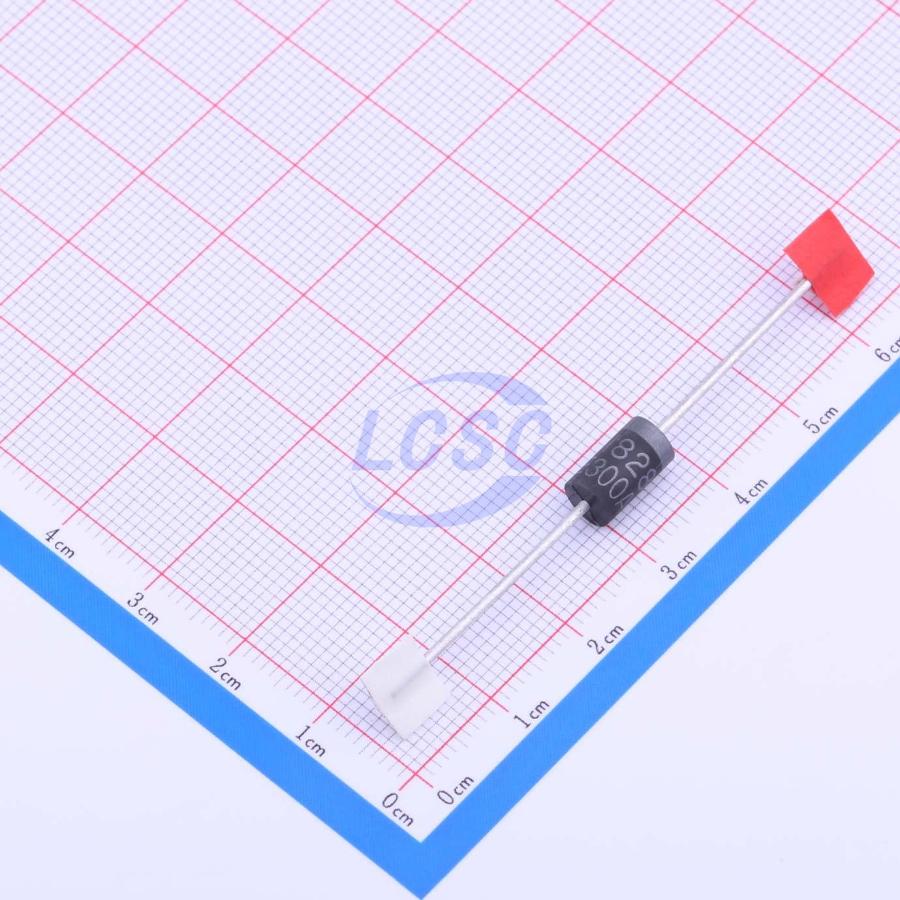

1.5KE300A
414VC Clamp 3.7A Ipp TVS DIODE DO-201
DO-201ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5KE300A
- Store part #
- C223916
- Package / case
- DO-201
- Category
- TVS Diodes
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
295 in stock
#C223916
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.03 | ₹76.03 |
| 10+ | ₹60.49 | ₹604.90 |
| 30+ | ₹53.67 | ₹1,610.10 |
| 100+ | ₹45.37 | ₹4,537.00 |
| 500+ | ₹41.53 | ₹20,765.00 |
| 1,200+ | ₹39.40 | ₹47,280.00 |
1 × ₹76.03
₹76.03
excl. GST
₹89.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,200 per reel
1.5KE300A
₹76.03 for 1 + GST
Specifications
- Clamping Voltage
- 414V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 3.7A
- Peak Pulse Power Dissipation (Ppp)
- 2kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 315V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 256V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Standard pack
- 1,200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.774 g
