VISHAYDatasheet (PDF)

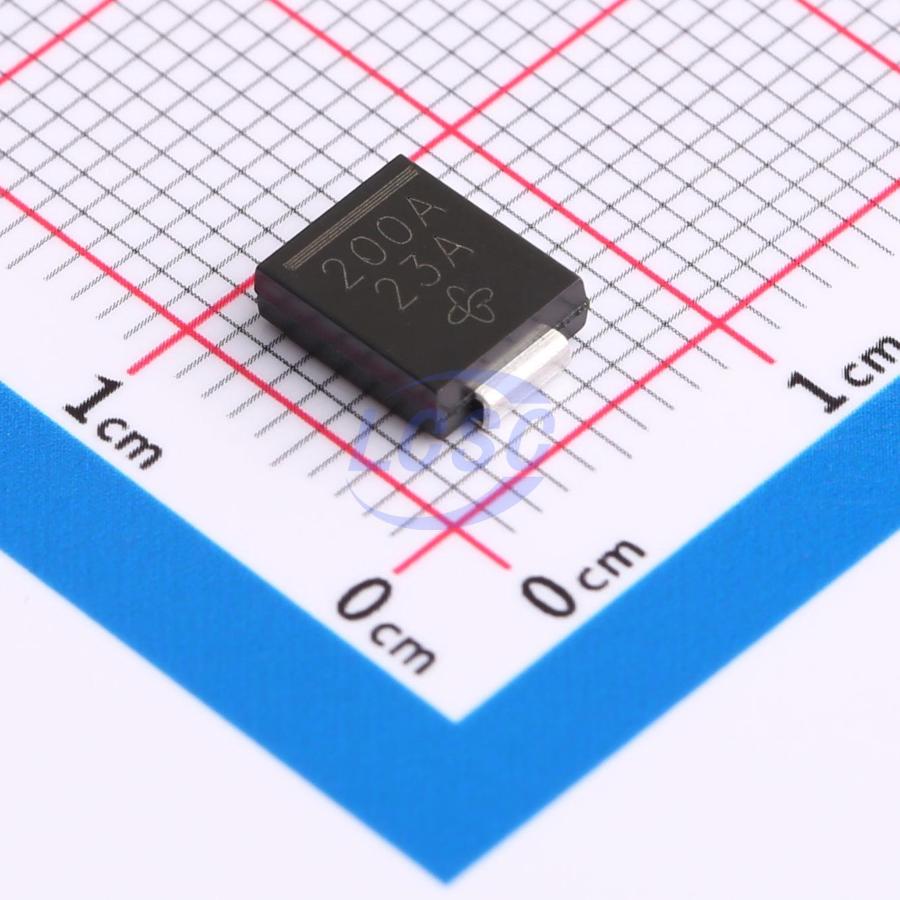

1.5SMC200A-E3/9AT
274VC Clamp 5.5A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
TVS DIODE 171VWM 274VC DO-214AB(SMCJ)
- Manufacturer
- VISHAY
- Manufacturer part #
- 1.5SMC200A-E3/9AT
- Store part #
- C3699302
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
321 in stock
#C3699302
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.10 | ₹76.10 |
| 10+ | ₹64.48 | ₹644.80 |
| 30+ | ₹59.55 | ₹1,786.50 |
| 100+ | ₹53.32 | ₹5,332.00 |
| 500+ | ₹50.51 | ₹25,255.00 |
| 1,000+ | ₹48.79 | ₹48,790.00 |
1 × ₹76.10
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
1.5SMC200A-E3/9AT
₹76.10 for 1 + GST
Specifications
- Clamping Voltage
- 274V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 190V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 171V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.442 g
