TECH PUBLICDatasheet (PDF)

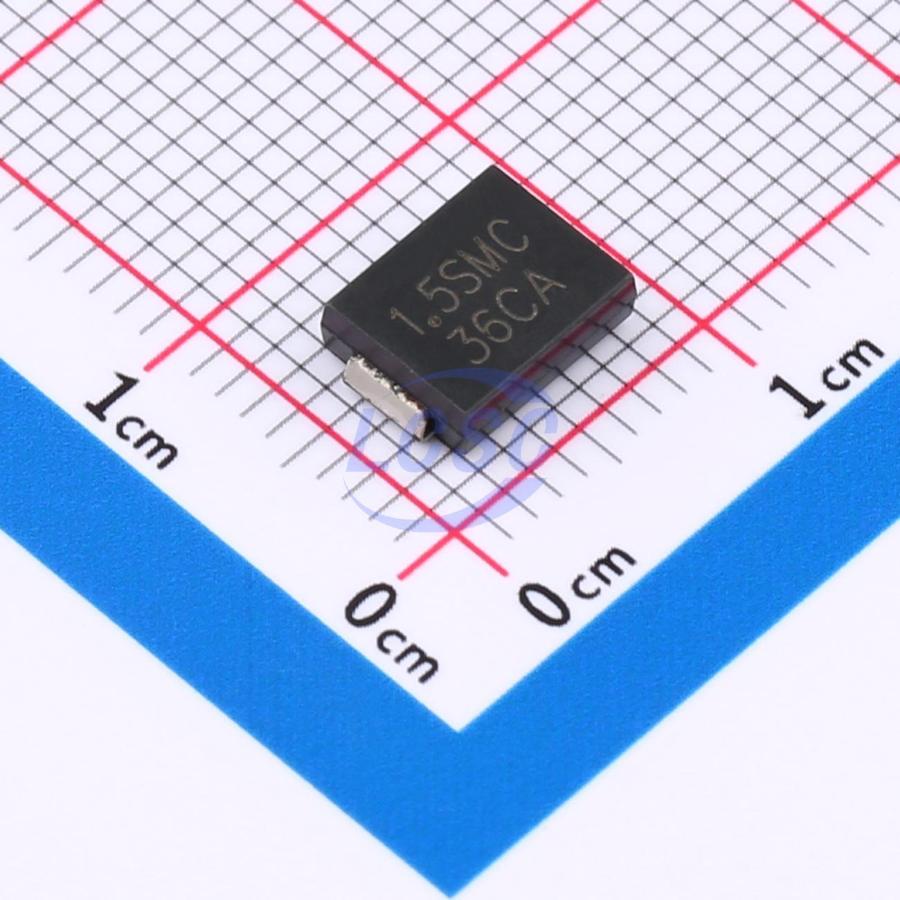

1.5SMC36CA
49.9VC Clamp 30.5A@10/1000us Ipp DO-214AB(SMC)
DO-214AB(SMC)RoHSActive
30.8VWM 49.9VC DO-214AB(SMC)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 1.5SMC36CA
- Store part #
- C41431795
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C41431795
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.61 | ₹73.05 |
| 50+ | ₹11.44 | ₹572.00 |
| 150+ | ₹9.86 | ₹1,479.00 |
| 500+ | ₹8.68 | ₹4,340.00 |
| 3,000+ | ₹7.73 | ₹23,190.00 |
| 6,000+ | ₹7.25 | ₹43,500.00 |
5 × ₹14.61
₹73.05
excl. GST
₹86.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1.5SMC36CA
₹73.05 for 5 + GST
Specifications
- Clamping Voltage
- 49.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 30.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 37.8V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 30.8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.376 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 1500W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ30CA#C42440475TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 7,235 | ₹16.74 · 7,235 in stock | View |
 | TPSMCJ30CA#C42440510TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 2,510 | ₹18.83 · 2,510 in stock | View |
 | SMCJ33CA#C42440476TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 4,485 | ₹16.62 · 4,485 in stock | View |
 | SMCJ28CA#C41425637TECH PUBLIC · DO-214AB(SMC) | TECH PUBLIC | DO-214AB(SMC) | 3,765 | ₹18.75 · 3,765 in stock | View |
