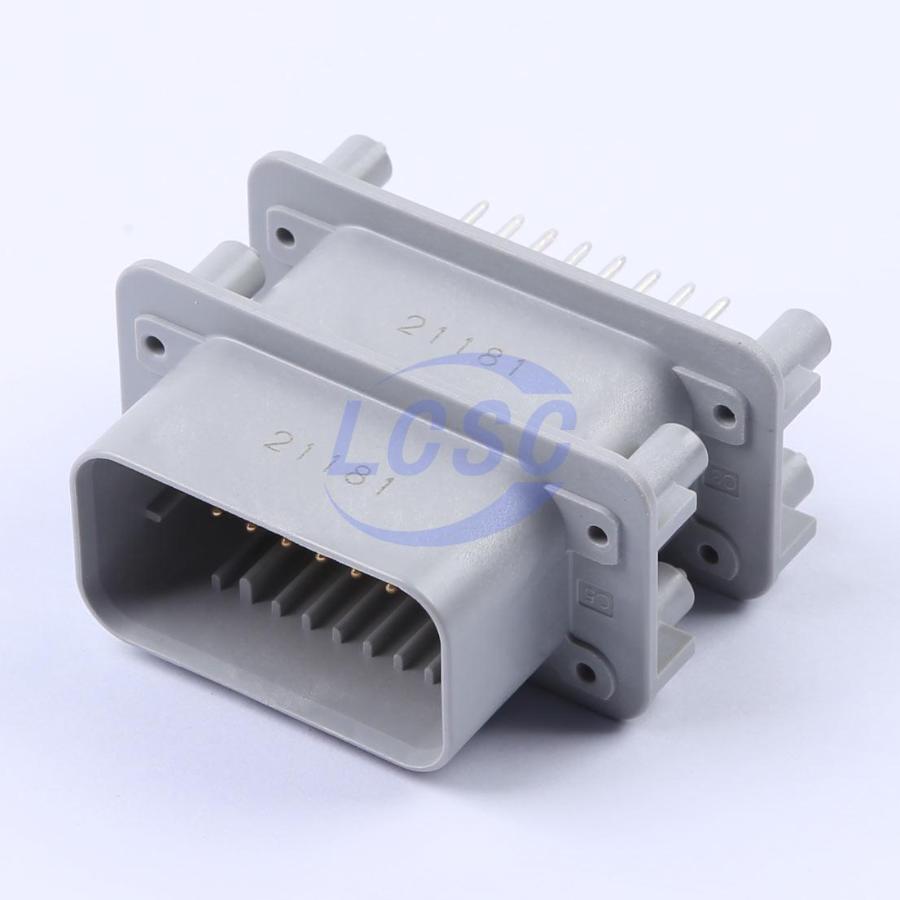

1-776200-4

The recommended mounting screw size is a thread-forming screw, such as Delta PT, with a size of 2.50 - 3.00mm [0.099 - 0.118 inches] and a tightening torque of 0.6 - 0.8 N-m. Customers should test the screw size and type to verify their selection for the application. The date code at this location uses a 5-digit code: the first 2 digits represent the year, the middle 2 digits represent the week number, and the last digit represents the date. Materials: receptacle housing - glass-filled PBT; contacts - tin-plated or gold-plated brass. The housing color is mechanically keyed and can only mate with plug assemblies of the same color. The receptacle mates with plug assembly 770680, which uses reel-feed terminals 770520 or loose terminals 770854. The recommended PCB layout applies to PCBs with a thickness of 1.57. The recommended mounting hole layout applies to panels with a maximum thickness of 5.0. Keying for 776200-1 and 776200-5. Keying for 776200-2 and 776200-4. Ensure the receptacle is flush with the panel surface all around before tightening to final torque. If the panel thickness is greater than 2.0, an alternative configuration may be used.
