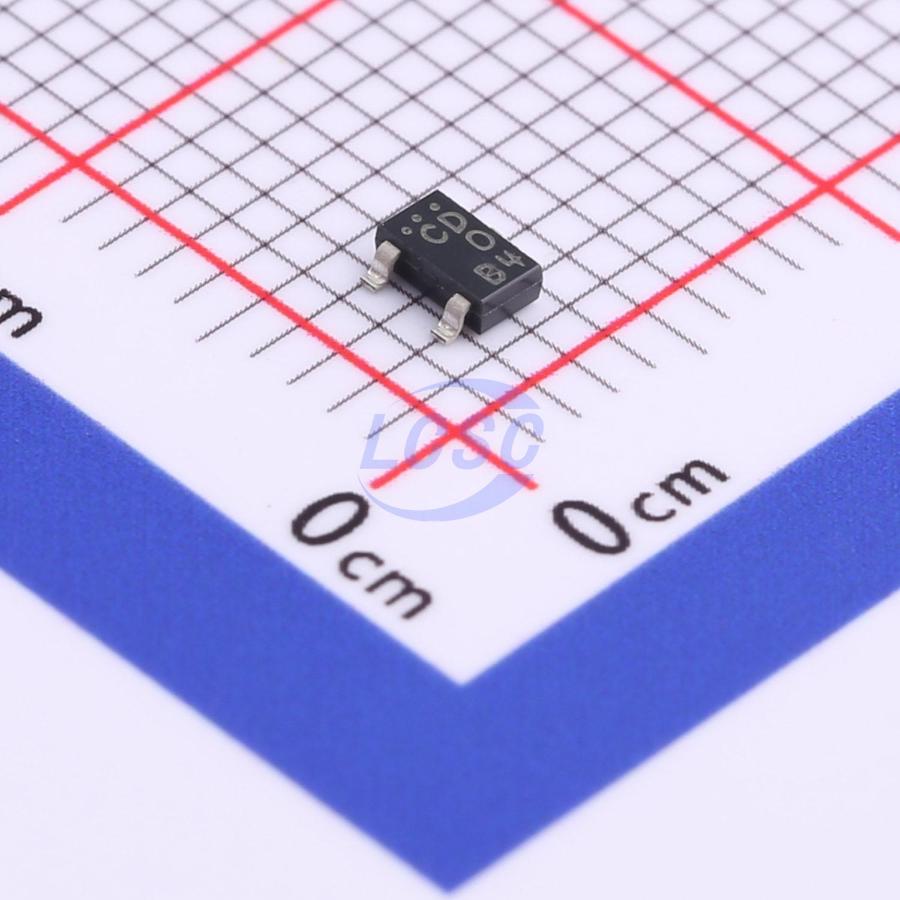

15C02CH-TL-E
Bipolar (BJT) Transistor NPN 15V 1A 400MHz 700mW Surface Mount CPH-3
CPH-3ROHS3 CompliantSold out at source
TRANS NPN 15V 1A CPH-3
- Manufacturer
- onsemi
- Manufacturer part #
- 15C02CH-TL-E
- Store part #
- C606312
- Package / case
- CPH-3
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C606312
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.94 | ₹71.94 |
| 10+ | ₹58.29 | ₹582.90 |
| 30+ | ₹52.44 | ₹1,573.20 |
| 100+ | ₹45.07 | ₹4,507.00 |
| 500+ | ₹41.82 | ₹20,910.00 |
| 1,000+ | ₹39.88 | ₹39,880.00 |
1 × ₹71.94
₹71.94
excl. GST
₹84.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
15C02CH-TL-E
₹71.94 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 400MHz
- Collector - Emitter Voltage VCEO
- 15V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 300
- Pd - Power Dissipation
- 700mW
- Current - Collector(Ic)
- 1A
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 280mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
Applications
- Low-frequency amplifer
- High-speed switching
- Small motor drive
Key features
- Large current capacity
- Low collector-to-emitter saturation voltage (resistance) RCE(sat) typ. = 300mΩ [IC = 1A , IB = 50mA]
- Ultrasmall package facilitates miniaturization in end products
- Small ON-resistance (Ron)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FMMT625QTA#C6557320DIODES · SOT-23-3 | DIODES | SOT-23-3 | 25 | ₹196.78 · 25 in stock | View |
 | FMMT619-JSM#C28642377JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,920 | ₹5.93 · 1,920 in stock | View |
 | DSS30101L-7#C5245591DIODES · SOT-23 | DIODES | SOT-23 | 20 | ₹33.15 · 20 in stock | View |
 | NH491#C7427903NH · SOT-23 | NH | SOT-23 | 1,600 | ₹3.68 · 1,600 in stock | View |
| FMMT624TC#C3200099DIODES · SOT-23 | DIODES | SOT-23 | 5 | ₹47.50 · 5 in stock | View | |
