VISHAYDatasheet (PDF)

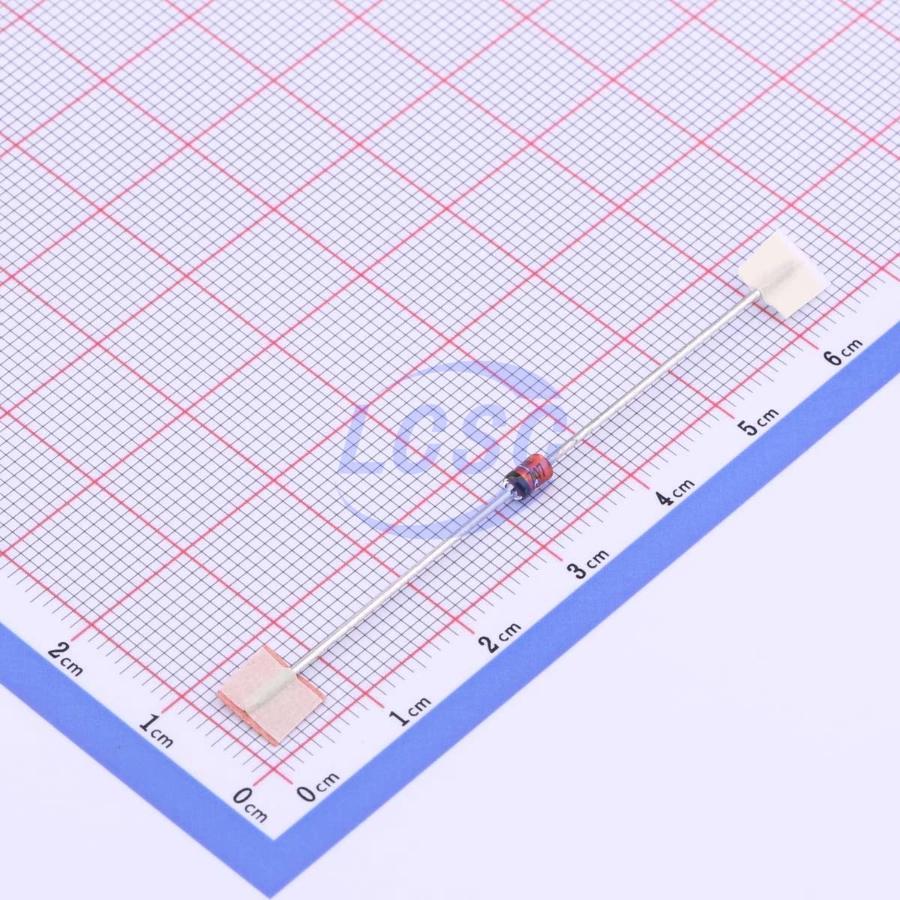

1N4747A-TR
Zener Diode Independent 20V 1300mW Through Hole DO-41 (DO-204AL)
DO-41 (DO-204AL)ROHS3 CompliantActive
DIODE ZENER 20V 1300mW DO-41 (DO-204AL)
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N4747A-TR
- Store part #
- C4555444
- Package / case
- DO-41 (DO-204AL)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C4555444
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.15 | ₹205.75 |
| 50+ | ₹32.44 | ₹1,622.00 |
| 150+ | ₹28.72 | ₹4,308.00 |
| 500+ | ₹24.07 | ₹12,035.00 |
| 2,500+ | ₹19.58 | ₹48,950.00 |
| 5,000+ | ₹18.34 | ₹91,700.00 |
5 × ₹41.15
₹205.75
excl. GST
₹242.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1N4747A-TR
₹205.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 5uA@15.2V
- Impedance(Zzt)
- 22Ω
- Zener Voltage(Nom)
- 20V
- Impedance(Zzk)
- 750Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
