VISHAYDatasheet (PDF)

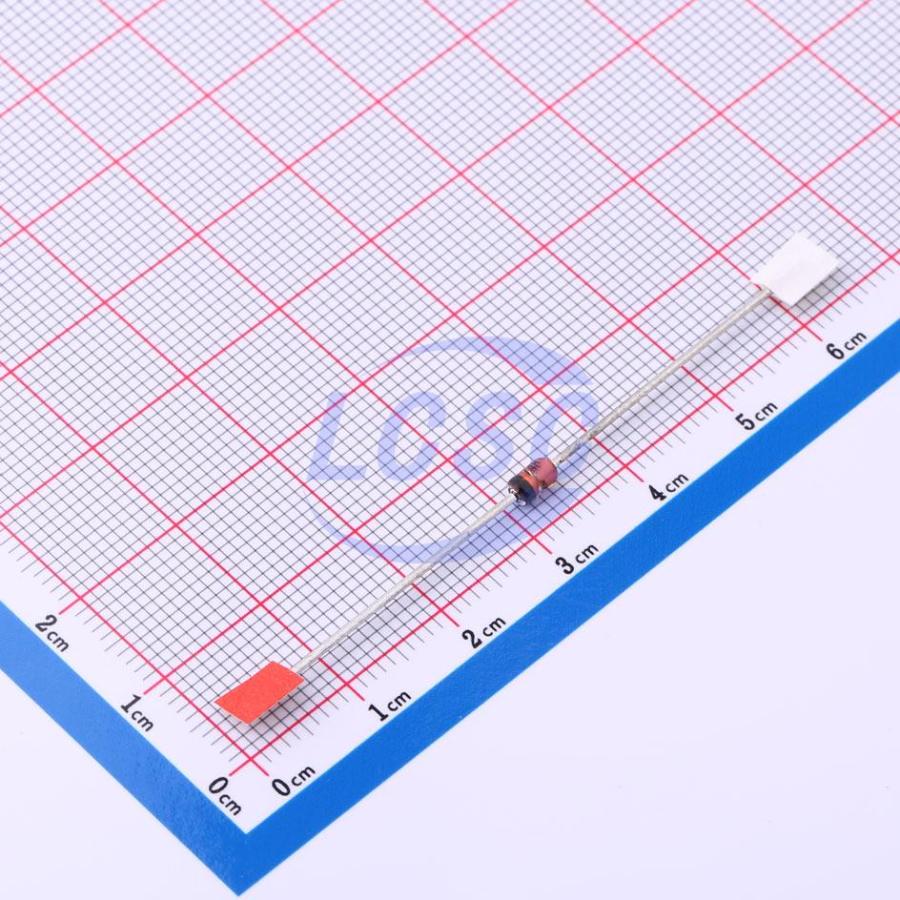

1N4748A-TR
Zener Diode Independent 22V 1300mW DO-204
DO-204ROHS3 CompliantActive
DIODE ZENER 22V 1300mW DO-204
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N4748A-TR
- Store part #
- C3009076
- Package / case
- DO-204
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
655 in stock
#C3009076
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.46 | ₹47.30 |
| 50+ | ₹7.38 | ₹369.00 |
| 150+ | ₹6.34 | ₹951.00 |
| 500+ | ₹5.56 | ₹2,780.00 |
| 2,500+ | ₹4.92 | ₹12,300.00 |
| 5,000+ | ₹4.62 | ₹23,100.00 |
5 × ₹9.46
₹47.30
excl. GST
₹55.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1N4748A-TR
₹47.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 5uA@16.7V
- Impedance(Zzt)
- 23Ω
- Zener Voltage(Range)
- 12.4V~14.1V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 750Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
Applications
- Voltage stabilization
Key features
- Silicon planar power Zener diodes
- For use in stabilizing and clipping circuits with high power rating
- Standard Zener voltage tolerance is ±5%
