VISHAYDatasheet (PDF)

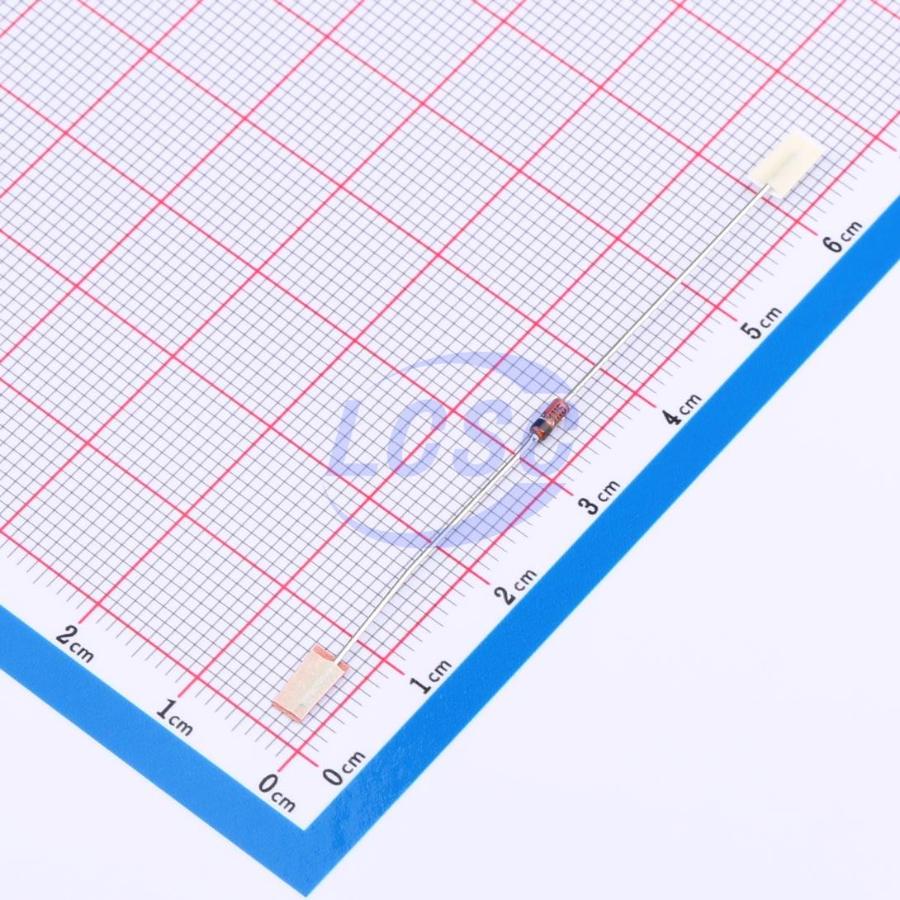

1N5240B-TR
Zener Diode Independent 10V 500mW DO-204AH
DO-204AHROHS3 CompliantActive
DIODE ZENER 10V 500mW DO-204AH
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N5240B-TR
- Store part #
- C5377588
- Package / case
- DO-204AH
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
275 in stock
#C5377588
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.54 | ₹76.54 |
| 10+ | ₹62.23 | ₹622.30 |
| 30+ | ₹55.29 | ₹1,658.70 |
| 100+ | ₹48.14 | ₹4,814.00 |
| 500+ | ₹44.02 | ₹22,010.00 |
| 1,000+ | ₹41.85 | ₹41,850.00 |
1 × ₹76.54
₹76.54
excl. GST
₹90.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
1N5240B-TR
₹76.54 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 3uA@8V
- Impedance(Zzt)
- 17Ω
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
Applications
- Stable voltage
Key features
- Silicon planar power Zener diodes
- Standard Zener voltage tolerance: ±5% with "B" suffix in ordering code (e.g., 1N5221B), ±2% with "C" suffix
- Also available in MiniMELF package (TZM5221 to TZM5267), SOT-23 package (MMBZ5225 to MMBZ5267), and SOD-123 package (MMSZ5225 to MMSZ5267)
