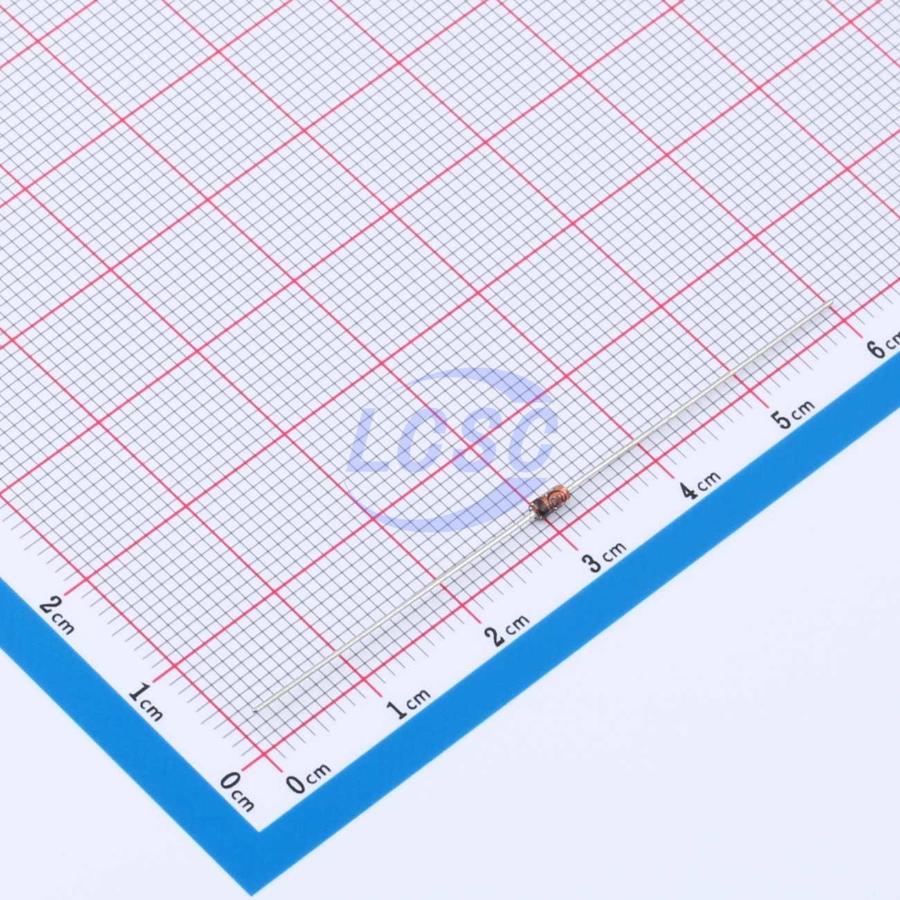

1N5242B
Zener Diode 12V 500mW Through Hole,D1.53xL3.05mm
DO-204ROHS3 CompliantActive
DIODE ZENER 12V 500mW Through Hole,D1.53xL3.05mm
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5242B
- Store part #
- C895262
- Package / case
- DO-204
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
380 in stock
#C895262
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.17 | ₹61.70 |
| 100+ | ₹4.84 | ₹484.00 |
| 500+ | ₹4.18 | ₹2,090.00 |
| 1,000+ | ₹3.68 | ₹3,680.00 |
| 5,000+ | ₹3.28 | ₹16,400.00 |
| 10,000+ | ₹3.08 | ₹30,800.00 |
10 × ₹6.17
₹61.70
excl. GST
₹72.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per bag
1N5242B
₹61.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 1uA@9.1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 11.4V~12.6V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.114 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N5242BTR#C512863onsemi · DO-35 | onsemi | DO-35 | 5,810 | ₹5.38 · 5,810 in stock | View |
 | 2EZ12D5#C7425399LGE · DO-41 | LGE | DO-41 | 2,130 | ₹12.17 · 2,130 in stock | View |
 | 1N4742A#C140853onsemi · DO-41 | onsemi | DO-41 | 5,200 | ₹15.65 · 5,200 in stock | View |
 | 1N4742ATR#C258174onsemi · DO-41 | onsemi | DO-41 | 1,660 | ₹16.15 · 1,660 in stock | View |
 | 1N4742A-G_AY_10001#C391336PANJIT · DO-41G | PANJIT | DO-41G | 20 | ₹8.07 · 20 in stock | View |
