onsemiDatasheet (PDF)

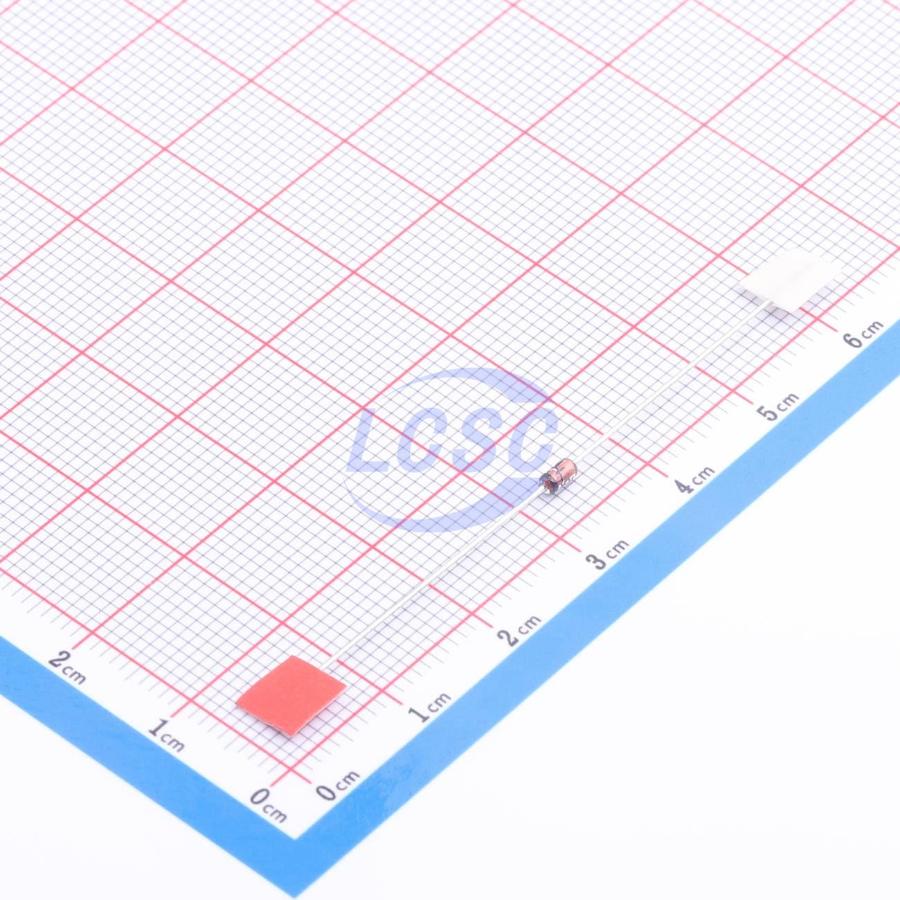

1N5246BTR
1 Independent 15.2V~16.8V 16V Through Hole,D1.53xL3.05mm Single Zener Diodes RoHS
Through Hole,D1.53xL3.05mmROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5246BTR
- Store part #
- C895268
- Package / case
- Through Hole,D1.53xL3.05mm
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C895268
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.01 | ₹70.05 |
| 50+ | ₹11.50 | ₹575.00 |
| 150+ | ₹10.25 | ₹1,537.50 |
| 500+ | ₹9.31 | ₹4,655.00 |
| 2,500+ | ₹8.56 | ₹21,400.00 |
| 5,000+ | ₹8.19 | ₹40,950.00 |
5 × ₹14.01
₹70.05
excl. GST
₹82.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1N5246BTR
₹70.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@12V
- Impedance(Zzt)
- 17Ω
- Zener Voltage(Range)
- 15.2V~16.8V
- Zener Voltage(Nom)
- 16V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 1N5246B/TR#C3731725MICROCHIP · DO-35(DO-204AH) | MICROCHIP | DO-35(DO-204AH) | On request | ₹317.76 · 0 in stock | View | |
| 1N5247BTR#C895270onsemi · Through Hole,D1.53xL3.05mm | onsemi | Through Hole,D1.53xL3.05mm | On request | ₹5.64 · 0 in stock | View | |
