onsemiDatasheet (PDF)

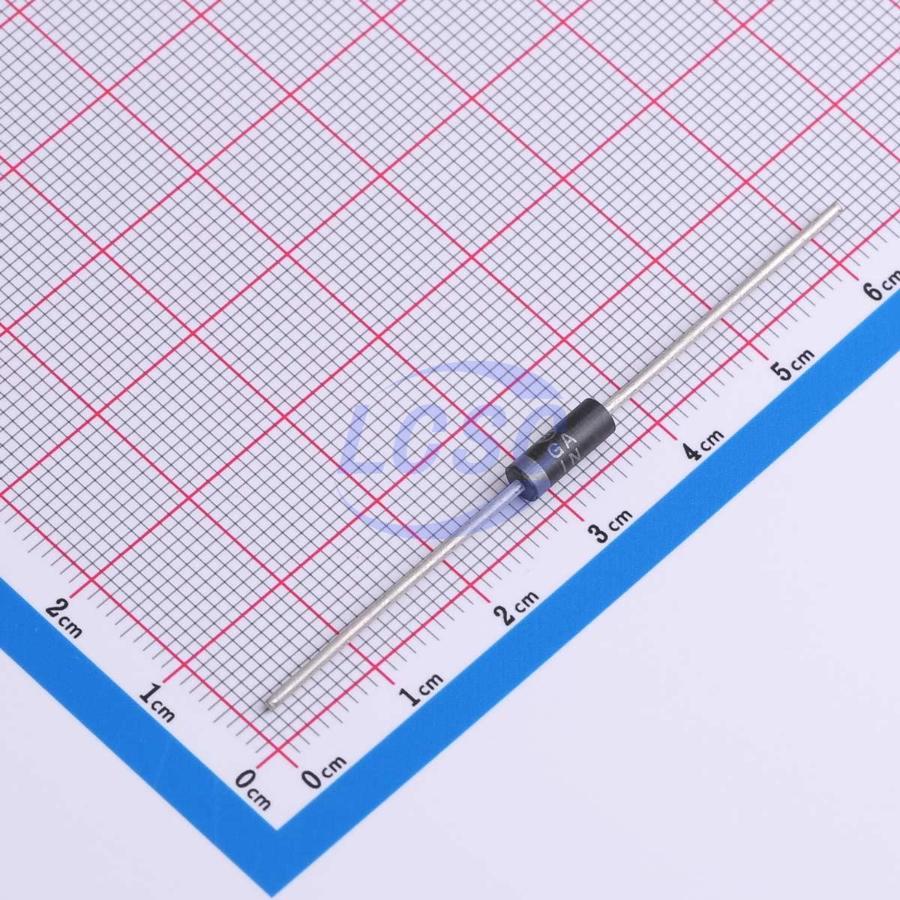

1N5336BG
Zener Diode 4.3V 5W Through Hole,D3.3xL8.38mm
Through Hole,D3.3xL8.4mmROHS3 CompliantActive
DIODE ZENER 4.3V 5W Through Hole,D3.3xL8.38mm
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5336BG
- Store part #
- C898879
- Package / case
- Through Hole,D3.3xL8.4mm
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
138 in stock
#C898879
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.28 | ₹61.28 |
| 10+ | ₹48.69 | ₹486.90 |
| 30+ | ₹43.25 | ₹1,297.50 |
| 100+ | ₹36.51 | ₹3,651.00 |
| 500+ | ₹33.47 | ₹16,735.00 |
| 1,000+ | ₹31.73 | ₹31,730.00 |
1 × ₹61.28
₹61.28
excl. GST
₹72.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
1N5336BG
₹61.28 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 2Ω
- Zener Voltage(Range)
- 4.09V~4.52V
- Zener Voltage(Nom)
- 4.3V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon- oxide passivated junctions. All this in an axial lead, transfer- molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Surge Rating of up to 180W @ 8.3ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Pb- Free Packages are Available
