onsemiDatasheet (PDF)

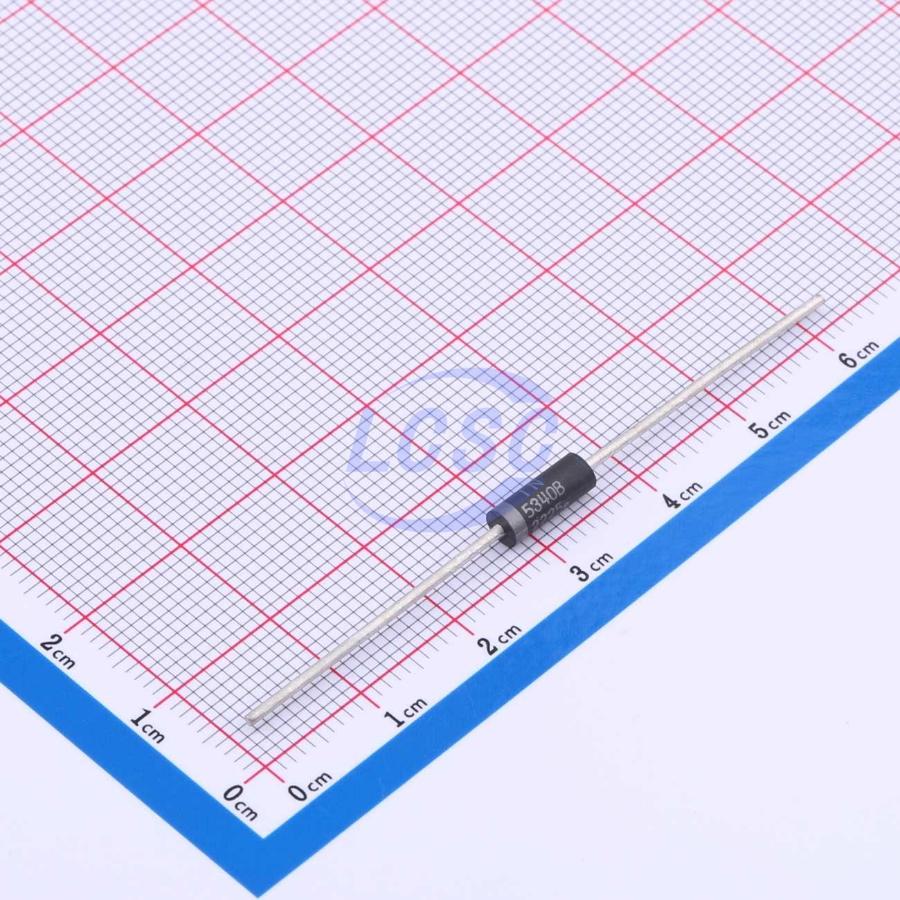

1N5340BG
Zener Diode 6V 5W Through Hole,D3.3xL8.38mm
Through Hole,D3.3xL8.4mmROHS3 CompliantActive
DIODE ZENER 6V 5W Through Hole,D3.3xL8.38mm
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5340BG
- Store part #
- C232444
- Package / case
- Through Hole,D3.3xL8.4mm
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,102 in stock
#C232444
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.54 | ₹55.54 |
| 10+ | ₹44.00 | ₹440.00 |
| 30+ | ₹39.20 | ₹1,176.00 |
| 100+ | ₹33.11 | ₹3,311.00 |
| 500+ | ₹30.28 | ₹15,140.00 |
| 1,000+ | ₹28.75 | ₹28,750.00 |
1 × ₹55.54
₹55.54
excl. GST
₹65.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
1N5340BG
₹55.54 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 1uA@3V
- Impedance(Zzt)
- 1Ω
- Zener Voltage(Range)
- 5.7V~6.3V
- Zener Voltage(Nom)
- 6V
- Impedance(Zzk)
- 300Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.65 g
Overview
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon- oxide passivated junctions. All this in an axial lead, transfer- molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Surge Rating of up to 180W @ 8.3ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Pb - Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N5340BRLG#C9706onsemi · Through Hole,D3.3xL8.4mm | onsemi | Through Hole,D3.3xL8.4mm | 129 | ₹70.41 · 129 in stock | View |
 | 1N5341BG#C898880onsemi · Through Hole,D3.3xL8.4mm | onsemi | Through Hole,D3.3xL8.4mm | 20,500 | ₹50.01 · 20,500 in stock | View |
