onsemiDatasheet (PDF)

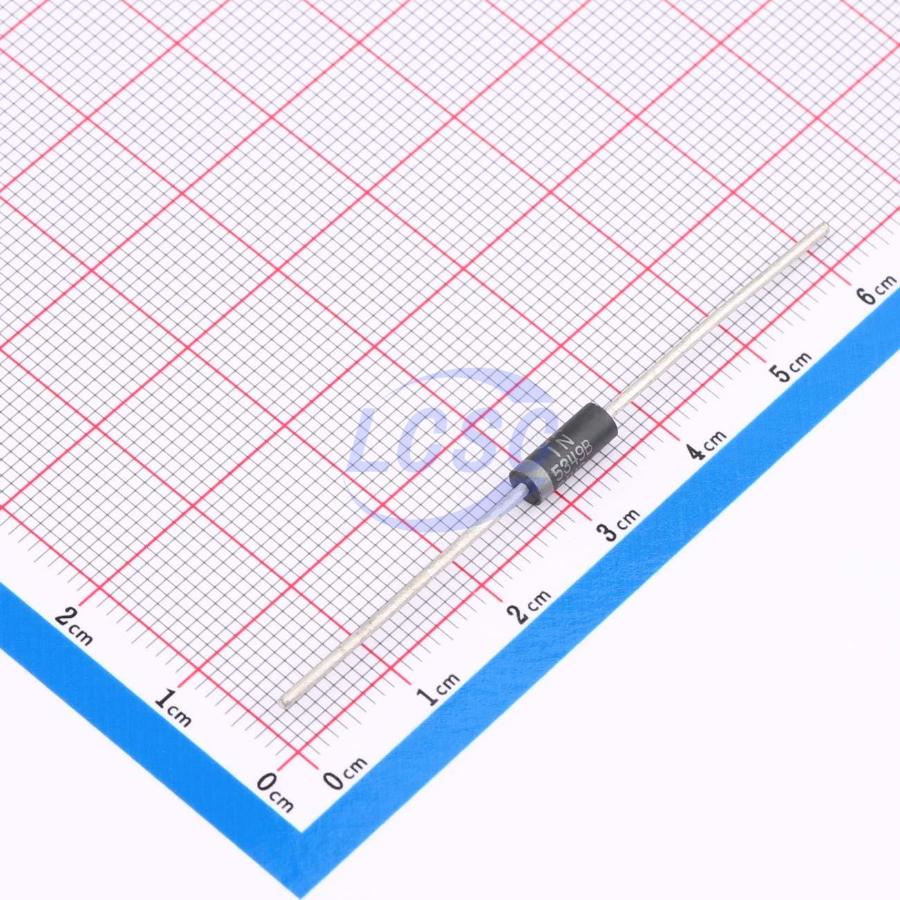

1N5349BG
Zener Diode Independent 12V 5W Through Hole DO-201
DO-201ROHS3 CompliantActive
DIODE ZENER 12V 5W DO-201
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5349BG
- Store part #
- C232446
- Package / case
- DO-201
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
980 in stock
#C232446
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.03 | ₹225.15 |
| 50+ | ₹35.48 | ₹1,774.00 |
| 150+ | ₹31.38 | ₹4,707.00 |
| 1,000+ | ₹23.75 | ₹23,750.00 |
| 2,000+ | ₹21.47 | ₹42,940.00 |
| 5,000+ | ₹20.11 | ₹1,00,550.00 |
5 × ₹45.03
₹225.15
excl. GST
₹265.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
1N5349BG
₹225.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 2uA@9.1V
- Impedance(Zzt)
- 2.5Ω
- Zener Voltage(Range)
- 11.4V~12.6V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 125Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.733 g
Overview
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon- oxide passivated junctions. All this in an axial lead, transfer- molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Surge Rating of up to 180W @ 8.3ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Pb- Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N5349BRLG#C9078onsemi · DO-27 | onsemi | DO-27 | 4,510 | ₹44.00 · 4,510 in stock | View |
 | 1N5350BRLG#C5308onsemi · DO-27 | onsemi | DO-27 | 3,725 | ₹39.76 · 3,725 in stock | View |
 | 1N5349B#C22463584GOODWORK · DO-27 | GOODWORK | DO-27 | On request | ₹16.84 · 0 in stock | View |
| 1N5349B#C3739984DIOTEC · DO-201 | DIOTEC | DO-201 | On request | ₹72.01 · 0 in stock | View | |
| CZ5349B BK PBFREE#C5652364Central · DO-201 | Central | DO-201 | On request | ₹145.56 · 0 in stock | View | |
