onsemiDatasheet (PDF)

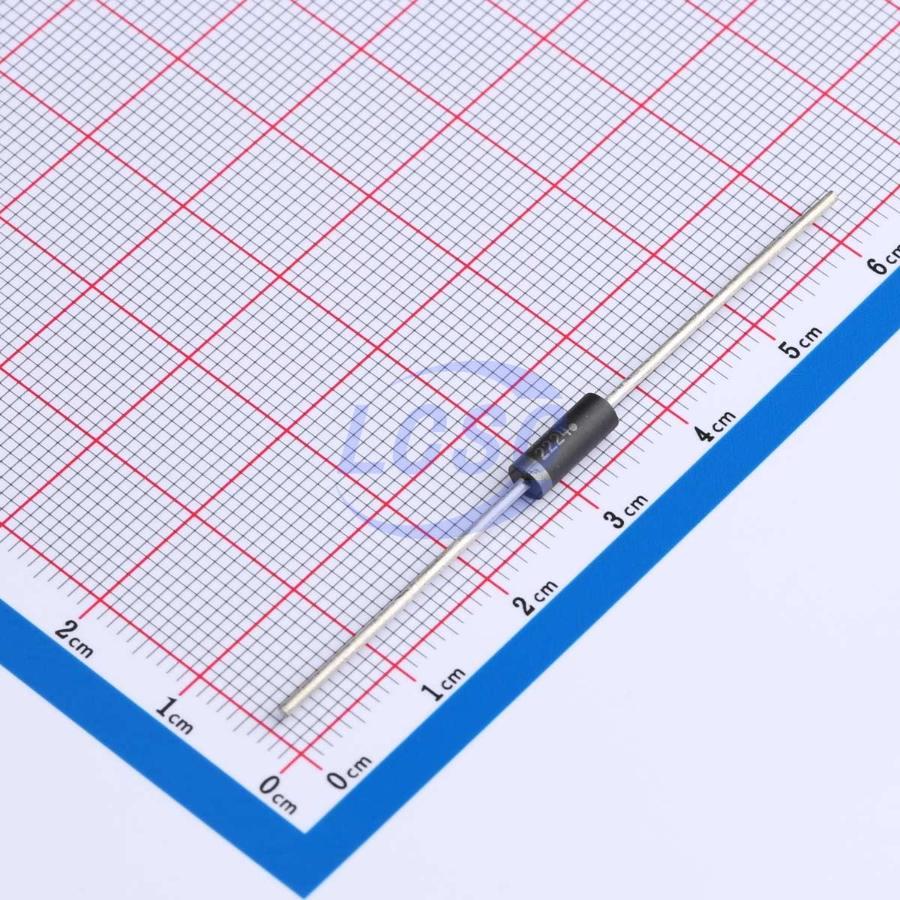

1N5364BG
Zener Diode 33V 5W Through Hole,D3.3xL8.38mm
Through Hole,D3.3xL8.4mmROHS3 CompliantActive
DIODE ZENER 33V 5W Through Hole,D3.3xL8.38mm
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5364BG
- Store part #
- C898894
- Package / case
- Through Hole,D3.3xL8.4mm
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C898894
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.57 | ₹257.85 |
| 50+ | ₹41.61 | ₹2,080.50 |
| 150+ | ₹37.34 | ₹5,601.00 |
| 1,000+ | ₹29.45 | ₹29,450.00 |
| 2,000+ | ₹27.07 | ₹54,140.00 |
| 5,000+ | ₹25.65 | ₹1,28,250.00 |
5 × ₹51.57
₹257.85
excl. GST
₹304.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
1N5364BG
₹257.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 500nA@25.1V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 31.35V~34.65V
- Zener Voltage(Nom)
- 33V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.6 g
Overview
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon- oxide passivated junctions. All this in an axial lead, transfer- molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Surge Rating of up to 180W @ 8.3ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Pb- Free Packages are Available
