onsemiDatasheet (PDF)

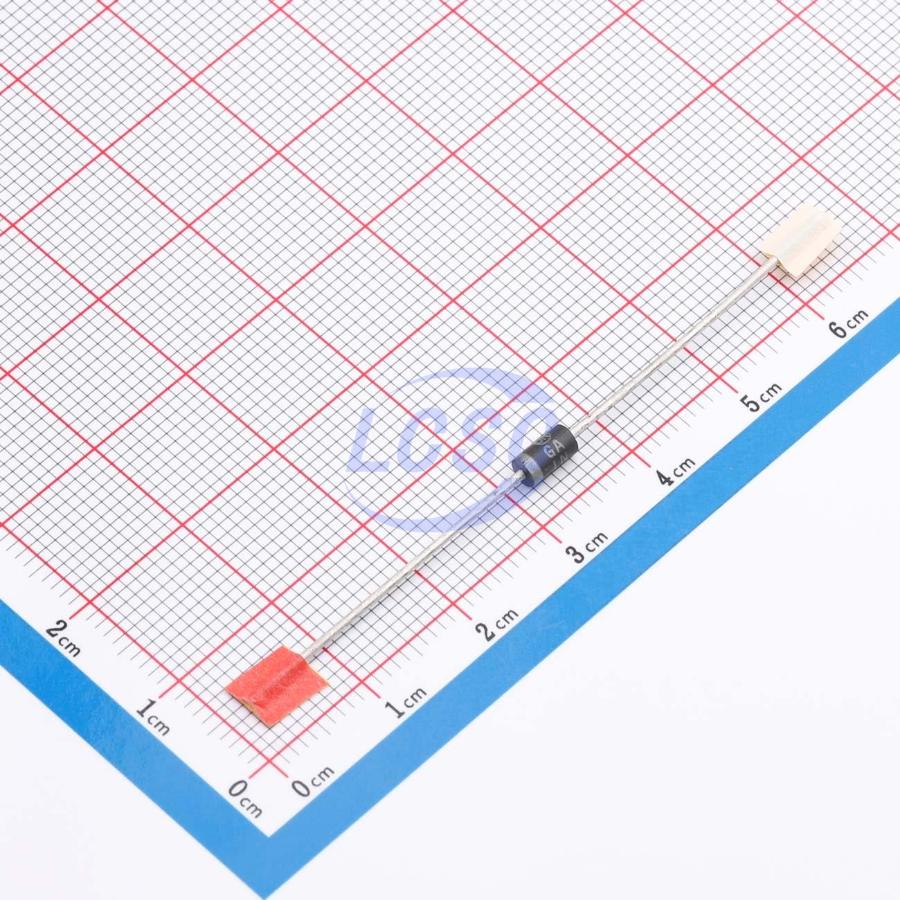

1N5932BRLG
1 Independent 19V~21V 20V Through Hole Single Zener Diodes RoHS
Through HoleROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5932BRLG
- Store part #
- C896119
- Package / case
- Through Hole
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C896119
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.51 | ₹122.51 |
| 10+ | ₹99.74 | ₹997.40 |
| 30+ | ₹88.47 | ₹2,654.10 |
| 100+ | ₹77.20 | ₹7,720.00 |
| 500+ | ₹70.48 | ₹35,240.00 |
| 1,000+ | ₹67.00 | ₹67,000.00 |
1 × ₹122.51
₹122.51
excl. GST
₹144.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
1N5932BRLG
₹122.51 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@15.2V
- Impedance(Zzt)
- 14Ω
- Zener Voltage(Range)
- 19V~21V
- Zener Voltage(Nom)
- 20V
- Impedance(Zzk)
- 650Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.357 g
Overview
This is a complete series of 3W Zener diodes with limits and excellent operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16KV) per Human Body Model
- Surge Rating of 98W @ 1ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Package No Larger than the Conventional 1 W Package
- Pb-Free Packages are Available
