onsemiDatasheet (PDF)

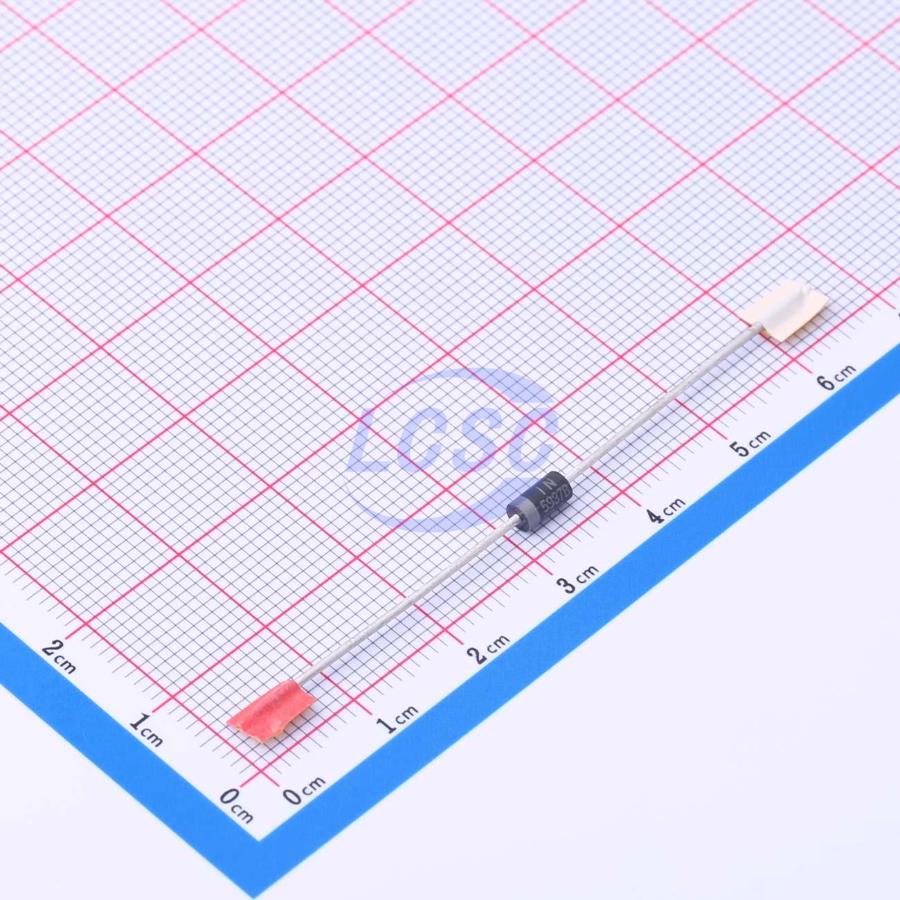

1N5937BRLG
Zener Diode 33V 3W Through Hole
Through HoleROHS3 CompliantActive
DIODE ZENER 33V 3W Through Hole
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5937BRLG
- Store part #
- C896122
- Package / case
- Through Hole
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
205 in stock
#C896122
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.65 | ₹183.25 |
| 50+ | ₹29.28 | ₹1,464.00 |
| 150+ | ₹26.12 | ₹3,918.00 |
| 500+ | ₹21.30 | ₹10,650.00 |
| 2,500+ | ₹19.54 | ₹48,850.00 |
| 6,000+ | ₹18.50 | ₹1,11,000.00 |
5 × ₹36.65
₹183.25
excl. GST
₹216.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
1N5937BRLG
₹183.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@25.1V
- Impedance(Zzt)
- 33Ω
- Zener Voltage(Range)
- 31.35V~34.65V
- Zener Voltage(Nom)
- 33V
- Impedance(Zzk)
- 800Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Overview
This is a complete series of 3W Zener diodes with limits and excellent operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16KV) per Human Body Model
- Surge Rating of 98W @ 1ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Package No Larger than the Conventional 1 W Package
- Pb-Free Packages are Available
