VISHAYDatasheet (PDF)

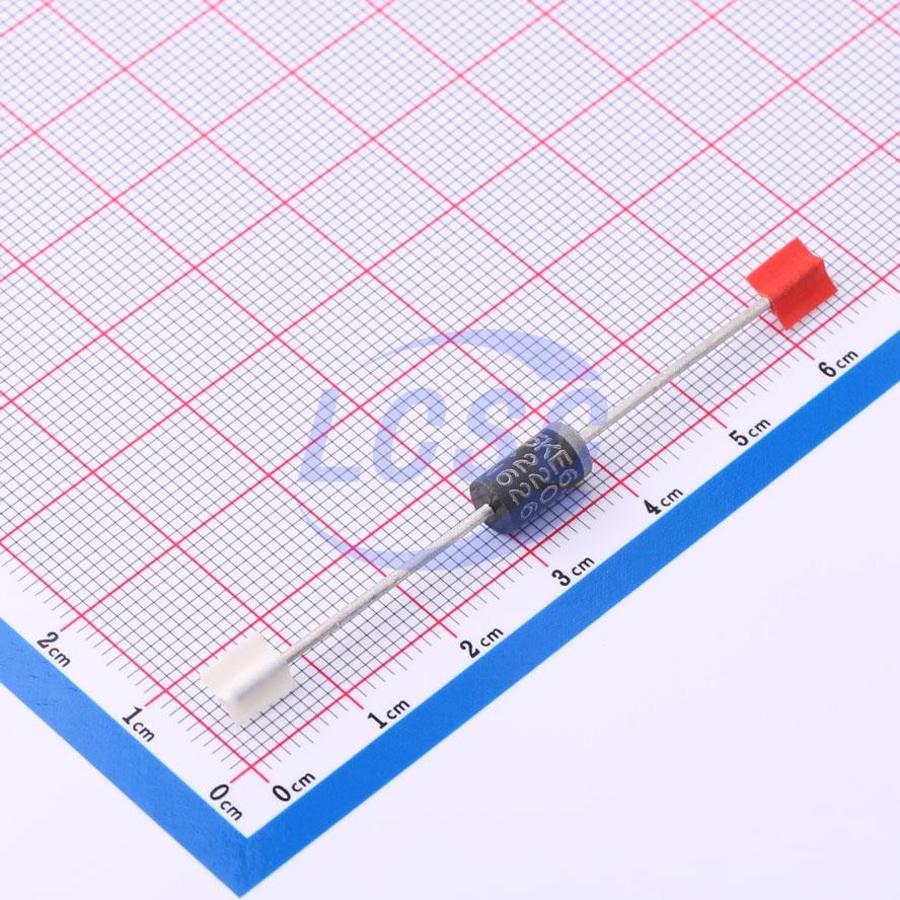

1N6267A-E3/54
10.5VC Clamp 133A@10/1000us Ipp TVS DIODE DO-27
DO-27ROHS3 CompliantActive
TVS DIODE 5.8VWM 10.5VC DO-27
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N6267A-E3/54
- Store part #
- C1975954
- Package / case
- DO-27
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C1975954
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.49 | ₹96.49 |
| 10+ | ₹94.32 | ₹943.20 |
| 30+ | ₹92.80 | ₹2,784.00 |
| 100+ | ₹91.49 | ₹9,149.00 |
1 × ₹96.49
₹96.49
excl. GST
₹113.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,400 per reel
1N6267A-E3/54
₹96.49 for 1 + GST
Specifications
- Clamping Voltage
- 10.5V
- Peak Pulse Current (Ipp)
- 133A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.88V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,400 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.01 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Glass passivated chip junction
- Available in unidirectional and bidirectional
- 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- AEC-Q101 qualified available
- Solder dip 275℃ max. 10 s, per JESD 22-B106
