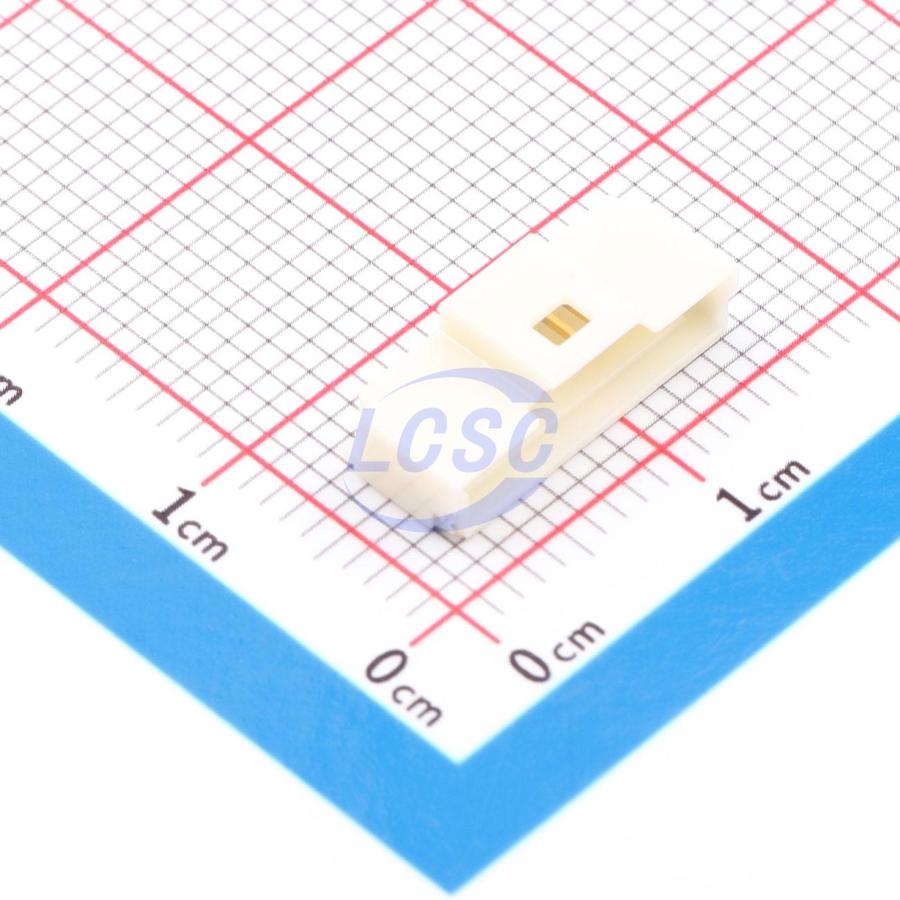

202396-1207 MOLEX
MOLEX

202396-1207

Surface Mount, Right Angle 50V 12 1 1mm 1A 12P -40℃~+105℃ Gold White 1x12P SMD,P=1mm,Surface Mount,Right Angle Headers, Male Pins RoHS

SMD,P=1mm,Surface Mount,Right AngleROHS3 CompliantActive

CONN HEADER SMD R/A 12POS 1mm

Manufacturer
MOLEX
Manufacturer part #
202396-1207
Store part #
C5367132
Package / case
SMD,P=1mm,Surface Mount,Right Angle
Category
Headers, Male Pins
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

67 in stock

#C5367132

Stock & price checked 8 days ago

QuantityUnit pricePack price
1+₹520.14₹520.14
10+₹453.37₹4,533.70
30+₹413.69₹12,410.70
100+₹373.58₹37,358.00
500+₹355.15₹1,77,575.00
1,000+₹346.69₹3,46,690.00

1 × ₹520.14

₹520.14

excl. GST

₹613.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 1,000 per reel

202396-1207

₹520.14 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type
Surface Mount, Right Angle
Voltage Rating (Max)
50V
Contact Material
Phosphor bronze
Number of PINs Per Row
12
Number of Rows
1
Pitch
1mm
Flame Retardant Rating
UL94V-0
Current Rating
1A
Number of PINs
12P
Operating Temperature
-40℃~+105℃
Contact Plating
Gold
Plastic Material
PA
Color
White
X-Length of Bottom Edge on Board (Spacing Line)
14mm
Pin Structure
1x12P

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
1,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.23 g
