JSCJDatasheet (PDF)

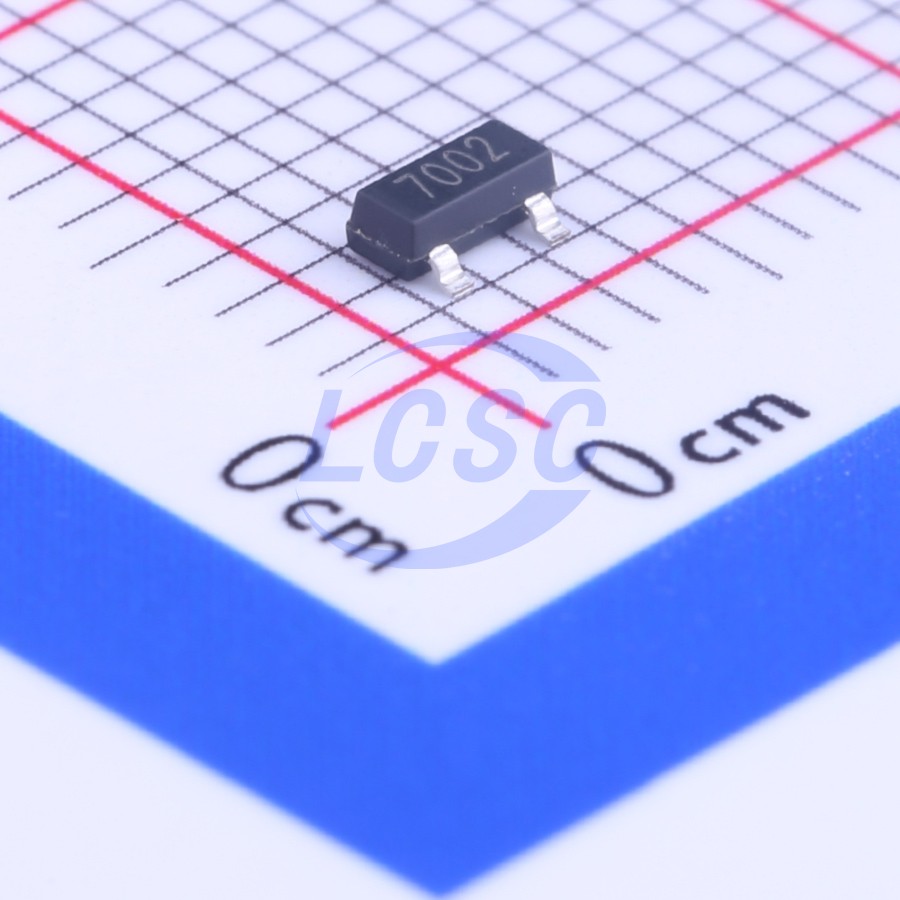

2N7002
N-Channel 60V 115mA 0.225W Surface Mount SOT-23
PopularSOT-23ROHS CompliantActive
MOSFET N-CH 60V 115mA SOT-23
- Manufacturer
- JSCJ
- Manufacturer part #
- 2N7002
- Store part #
- C8545
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,00,200 in stock
#C8545
Stock & price checked 13 min ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.37 | ₹118.50 |
| 500+ | ₹1.89 | ₹945.00 |
| 3,000+ | ₹1.68 | ₹5,040.00 |
| 6,000+ | ₹1.52 | ₹9,120.00 |
| 24,000+ | ₹1.46 | ₹35,040.00 |
| 51,000+ | ₹1.40 | ₹71,400.00 |
50 × ₹2.37
₹118.50
excl. GST
₹139.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002
₹118.50 for 50 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 225mW
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 115mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 5Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.035 g
Overview
Applications
- Load Switch for Portable Devices
- DC/DC Converter
Key features
- High density cell design for low RDS(ON)
- Voltage controlled small signal switch
- Rugged and reliable
- High saturation current capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS123#C79015JSCJ · SOT-23 | JSCJ | SOT-23 | 1,69,860 | ₹3.31 · 1,69,860 in stock | View |
 | CJ2310#C75882JSCJ · SOT-23 | JSCJ | SOT-23 | 3,04,630 | ₹5.41 · 3,04,630 in stock | View |
 | CJ2324#C81053JSCJ · SOT-23 | JSCJ | SOT-23 | 17,410 | ₹8.37 · 17,410 in stock | View |
 | 2N7002K#C2910165JSCJ · SOT-23 | JSCJ | SOT-23 | 1,00,950 | ₹2.55 · 1,00,950 in stock | View |
