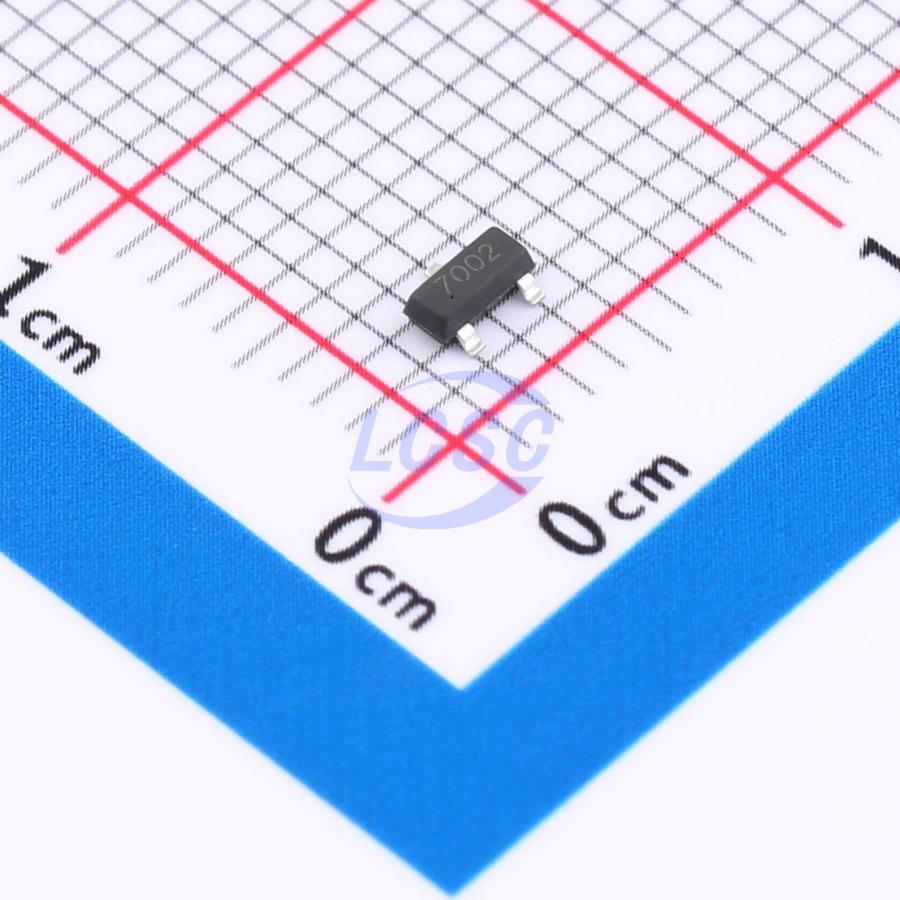

2N7002-VB
N-Channel 60V 250mA 300mW Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 60V 250mA SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2N7002-VB
- Store part #
- C4355058
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C4355058
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.54 | ₹75.40 |
| 100+ | ₹6.03 | ₹603.00 |
| 300+ | ₹5.27 | ₹1,581.00 |
| 3,000+ | ₹4.58 | ₹13,740.00 |
| 6,000+ | ₹4.13 | ₹24,780.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹7.54
₹75.40
excl. GST
₹88.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002-VB
₹75.40 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 5pF
- Current - Continuous Drain(Id)
- 250mA
- Ciss-Input Capacitance
- 25pF
- Pd - Power Dissipation
- 300mW
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 2.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 400pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Halogen-free per IEC 61249-2-21
- Low threshold: 2 V (typical)
- Low input capacitance: 25 pF
- Fast switching speed: 25 ns
- Low input and output leakage current
- Trench power MOSFET
- RoHS compliant per directive 2002/95/EC
- Low offset voltage
- Low-voltage operation
- Buffer-free drive capability
- High-speed circuits
- Low error voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSN20-7-F-VB#C18212459VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 200 | ₹9.23 · 200 in stock | View |
 | RK7002A-VB#C19188159VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹8.77 · 100 in stock | View |
 | AP2N7002K-HF-VB#C19190131VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹7.50 · 10 in stock | View |
 | BSS670S2L-VB#C20417443VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.18 · 30 in stock | View |
 | 5LN01C-TB-E-VB#C20755117VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 40 | ₹7.50 · 40 in stock | View |
