DIODESDatasheet (PDF)

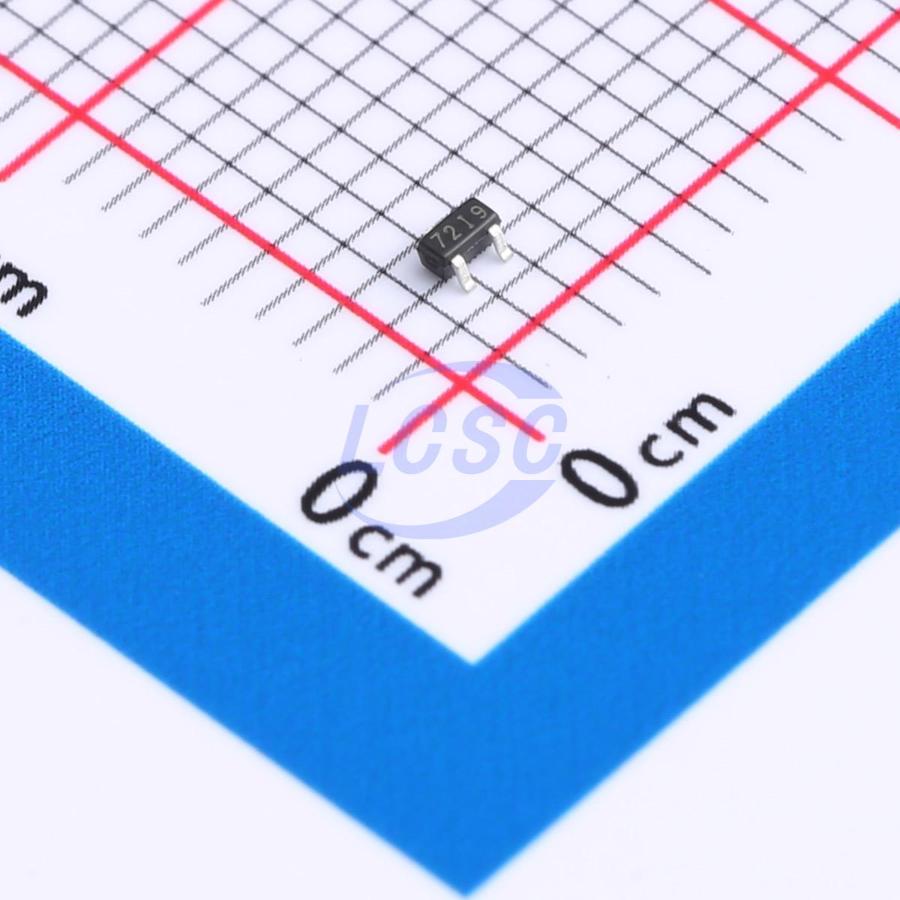

2N7002T-7-01-F
N-Channel 60V 115mA 150mW Surface Mount SOT-523-3
SOT-523-3ROHS CompliantActive
MOSFET N-CH 60V 115mA SOT-523-3
- Manufacturer
- DIODES
- Manufacturer part #
- 2N7002T-7-01-F
- Store part #
- C526326
- Package / case
- SOT-523-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C526326
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.14 | ₹40.70 |
| 50+ | ₹7.99 | ₹399.50 |
| 150+ | ₹7.89 | ₹1,183.50 |
| 500+ | ₹7.79 | ₹3,895.00 |
5 × ₹8.14
₹40.70
excl. GST
₹48.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002T-7-01-F
₹40.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 11pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 150mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 115mA
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 7.5Ω@5V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Battery Operated Systems
- Solid-State Relays
- Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Ultra-Small Surface Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002T-TP#C725559MCC · SOT-523 | MCC | SOT-523 | 980 | ₹8.80 · 980 in stock | View |
 | 2N7002T-7-F#C139445DIODES · SOT-523 | DIODES | SOT-523 | On request | ₹15.88 · 0 in stock | View |
 | 2N7002T#C5334589Shikues · SOT-523 | Shikues | SOT-523 | 2,860 | ₹3.70 · 2,860 in stock | View |
 | K2N7002T-7-F#C2904827KUU · SOT-523 | KUU | SOT-523 | 320 | ₹3.07 · 320 in stock | View |
 | WM06N03L#C3039350Wayon · SOT-523 | Wayon | SOT-523 | 7,180 | ₹4.26 · 7,180 in stock | View |
