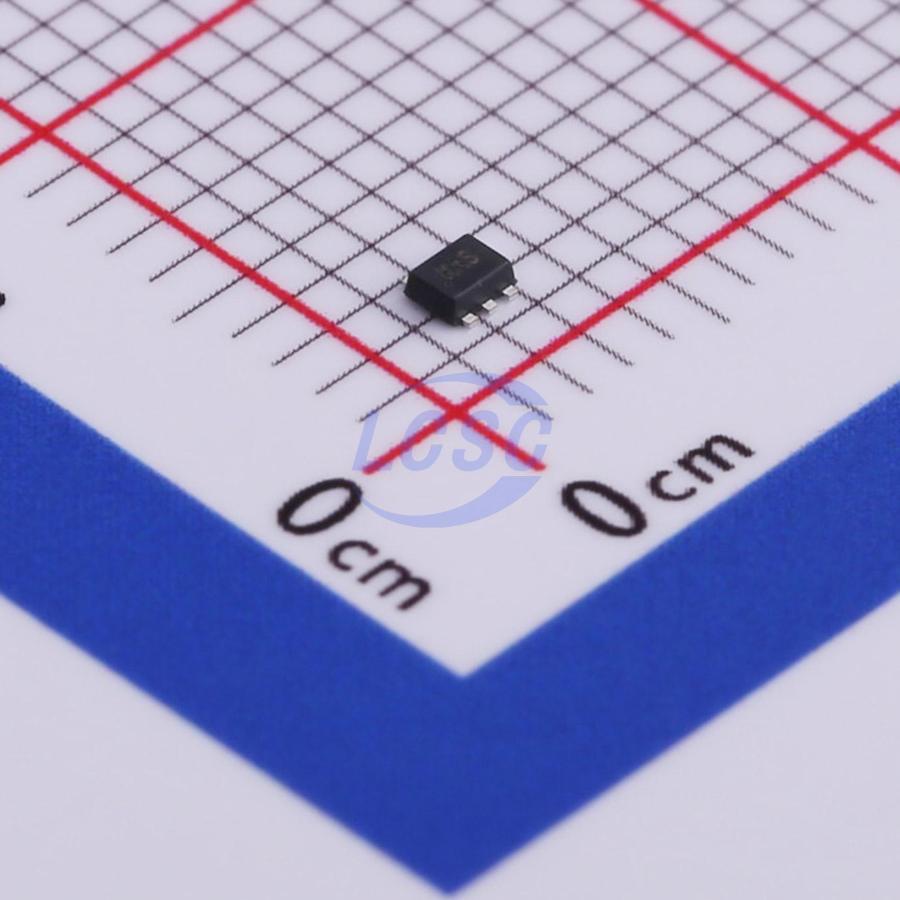

2N7002V
N-Channel 60V 115mA 150mW Surface Mount SOT-563
SOT-563ROHS CompliantActive
MOSFET N-CH 60V 115mA SOT-563
- Manufacturer
- JSCJ
- Manufacturer part #
- 2N7002V
- Store part #
- C504145
- Package / case
- SOT-563
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C504145
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.72 | ₹107.20 |
| 100+ | ₹8.82 | ₹882.00 |
| 300+ | ₹7.87 | ₹2,361.00 |
| 3,000+ | ₹6.77 | ₹20,310.00 |
| 6,000+ | ₹6.20 | ₹37,200.00 |
| 9,000+ | ₹5.91 | ₹53,190.00 |
10 × ₹10.72
₹107.20
excl. GST
₹126.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002V
₹107.20 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 150mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 115mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 3Ω@5V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Applications
- Load Switch for Portable Devices
- DC/DC Converter
Key features
- Dual N-channel MOSFET
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage
