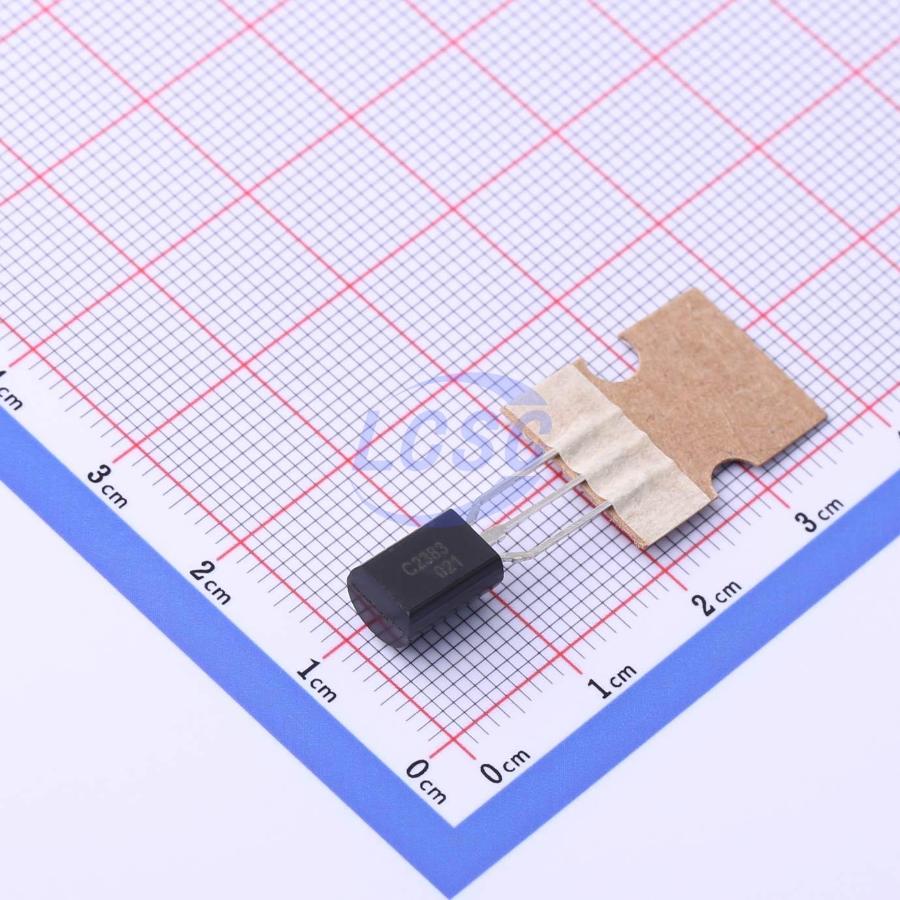

JSCJ

2SC2383-TA

Bipolar (BJT) Transistor NPN 160V 1A 20MHz 0.9W Through Hole TO-92MOD

TO-92MODROHS CompliantActive

TRANS NPN 160V 1A TO-92MOD

Manufacturer: JSCJ
Manufacturer part #: 2SC2383-TA
Store part #: C2961246
Package / case: TO-92MOD
Category: Single Bipolar Transistors
Packaging: Box-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,625 in stock

#C2961246

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹14.88	₹74.40
50+	₹11.64	₹582.00
150+	₹10.03	₹1,504.50
500+	₹8.82	₹4,410.00
2,000+	₹7.83	₹15,660.00
4,000+	₹7.34	₹29,360.00

Quantity (min 5, multiples of 5)

5 × ₹14.88

₹74.40

excl. GST

₹87.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per box

2SC2383-TA

₹74.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 1uA
Operating Temperature: -55℃~+150℃
Transition frequency(fT): 20MHz
Collector - Emitter Voltage VCEO: 160V
Emitter-Base Voltage VEBO: 6V
DC Current Gain: 60
Current - Collector(Ic): 1A
Pd - Power Dissipation: 900mW
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 1V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Box-packed
Standard pack: 2,000 / Box
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.66 g

Overview

Key features

High Voltage: VCEO = 160V
Large Continuous Collector Current Capability
Complementary to 2SA1013
