ROHMDatasheet (PDF)

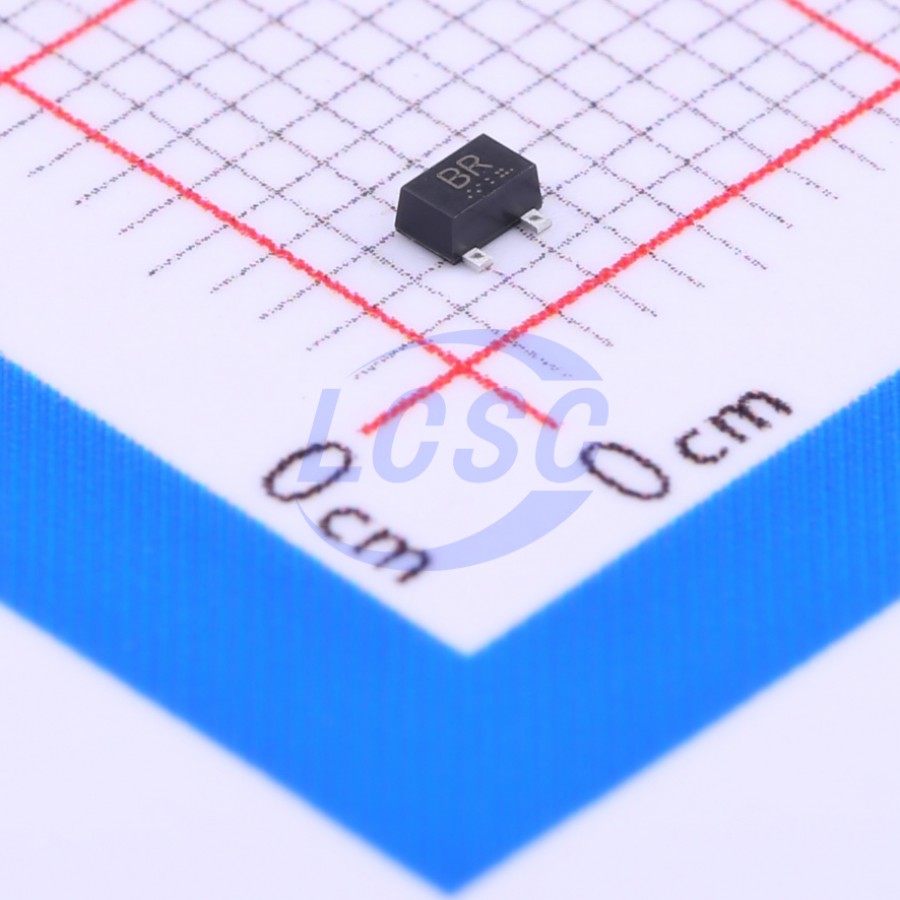

2SC4081UBTLR
Bipolar (BJT) Transistor NPN 50V 150mA 180MHz 200mW Surface Mount SC-70(SOT-323)
SC-70(SOT-323)ROHS3 CompliantActive
TRANS NPN 50V 150mA SC-70(SOT-323)
- Manufacturer
- ROHM
- Manufacturer part #
- 2SC4081UBTLR
- Store part #
- C308647
- Package / case
- SC-70(SOT-323)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C308647
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.10 | ₹82.00 |
| 200+ | ₹3.16 | ₹632.00 |
| 600+ | ₹2.65 | ₹1,590.00 |
| 3,000+ | ₹2.33 | ₹6,990.00 |
| 9,000+ | ₹2.06 | ₹18,540.00 |
| 21,000+ | ₹1.92 | ₹40,320.00 |
20 × ₹4.10
₹82.00
excl. GST
₹96.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2SC4081UBTLR
₹82.00 for 20 + GST
Specifications
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 180MHz
- Collector - Emitter Voltage VCEO
- 50V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 180
- Current - Collector(Ic)
- 150mA
- Pd - Power Dissipation
- 200mW
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 400mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
General purpose small signal amplifier (50V, 150mA)
Applications
- GENERAL PURPOSE SMALL SIGNAL AMPLIFIER
Key features
- Low Cob. Cob = 2.0 pF (Typ.)
- Complements the 2SA2029/ 2SA1774EB/2SA1774/2SA1576UB/ 2SA1576U3/2SA1037AK.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SC4081(RANGE:180-390)#C8568JSCJ · SOT-323 | JSCJ | SOT-323 | 520 | ₹3.44 · 520 in stock | View |
 | 2PC4081R,115#C554095Nexperia · SOT-323-3 | Nexperia | SOT-323-3 | 1,260 | ₹5.99 · 1,260 in stock | View |
 | L2SC4081RT1G#C383170LRC · SC-70 | LRC | SC-70 | 3,000 | ₹3.29 · 3,000 in stock | View |
| 2SC5876U3T106R#C509801ROHM · SOT-323-3 | ROHM | SOT-323-3 | On request | ₹22.17 · 0 in stock | View | |
| 2SC4116-GR,LXHF#C5496027TOSHIBA · SC-70 | TOSHIBA | SC-70 | On request | ₹14.54 · 0 in stock | View | |
