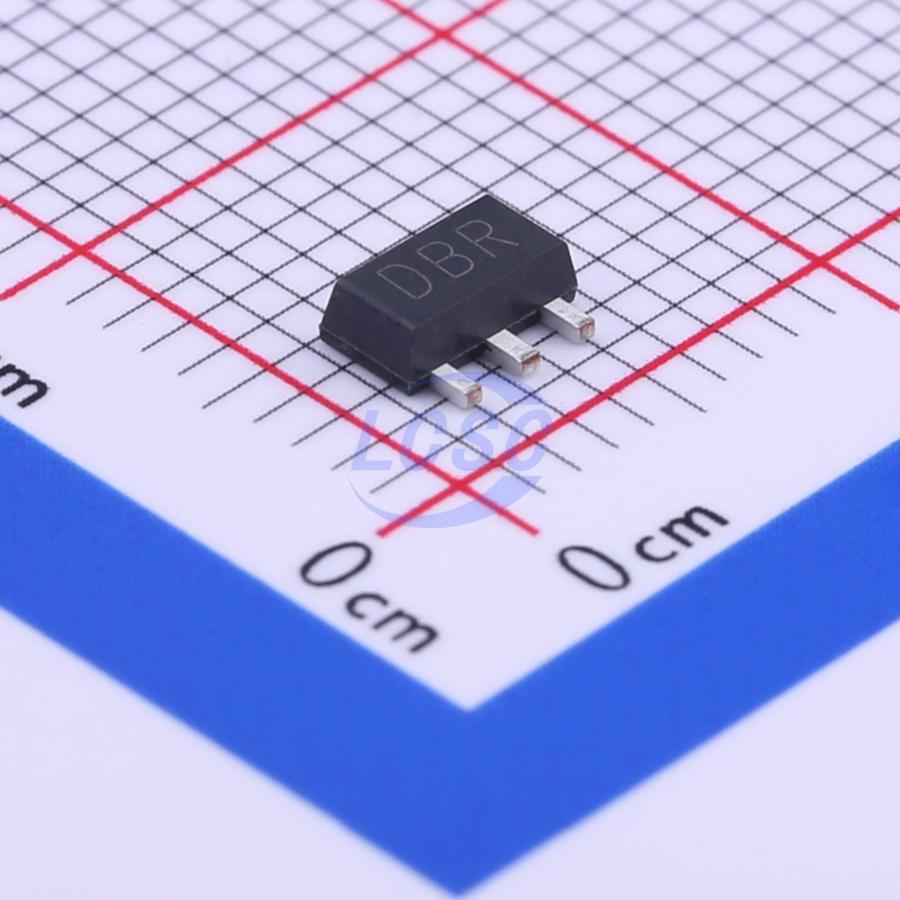

JSCJ

2SD1766(RANGE:180-390)

Bipolar (BJT) Transistor NPN 32V 2A 100MHz 500mW Surface Mount SOT-89-3L

SOT-89-3LROHS CompliantActive

TRANS NPN 32V 2A SOT-89-3L

Manufacturer: JSCJ
Manufacturer part #: 2SD1766(RANGE:180-390)
Store part #: C24220
Package / case: SOT-89-3L
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,005 in stock

#C24220

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
5+	₹13.48	₹67.40
50+	₹11.27	₹563.50
150+	₹10.16	₹1,524.00
1,000+	₹8.86	₹8,860.00
2,000+	₹8.20	₹16,400.00
5,000+	₹7.87	₹39,350.00

Quantity (min 5, multiples of 5)

5 × ₹13.48

₹67.40

excl. GST

₹79.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

2SD1766(RANGE:180-390)

₹67.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 1uA
Operating Temperature: -55℃~+150℃
Transition frequency(fT): 100MHz
Collector - Emitter Voltage VCEO: 32V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 82
Current - Collector(Ic): 2A
Pd - Power Dissipation: 500mW
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 800mV

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.147 g
