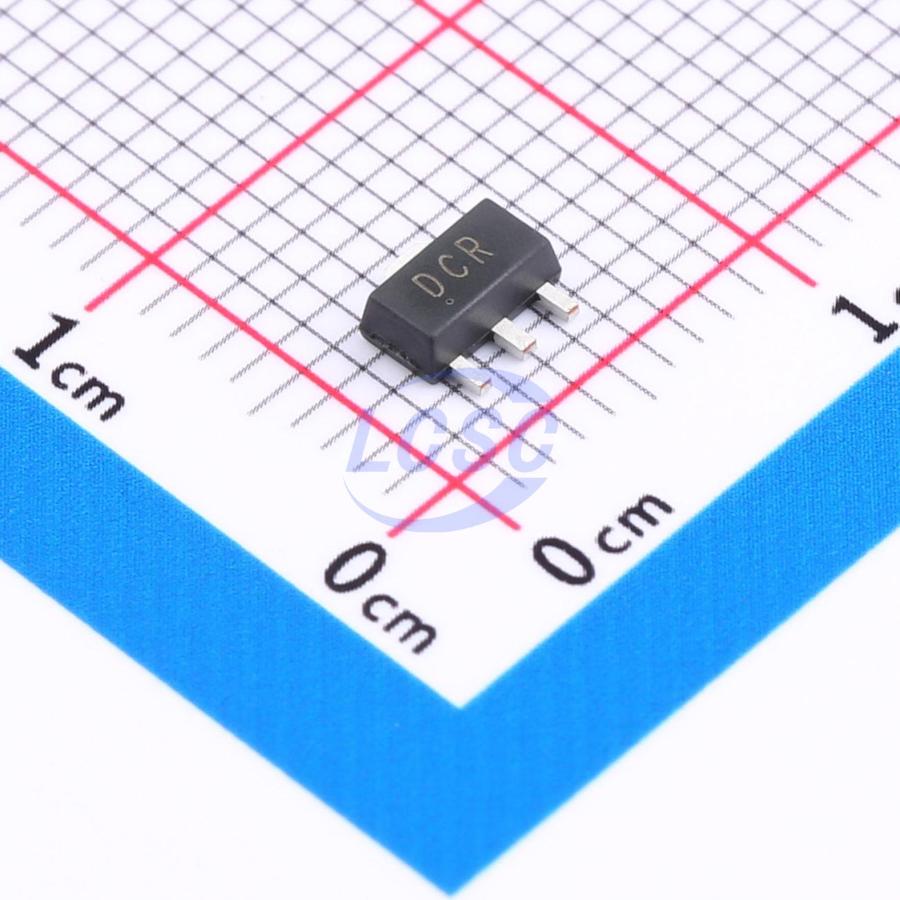

JSCJ

2SD1767

Bipolar (BJT) Transistor NPN 80V 700mA 120MHz 500mW Surface Mount SOT-89-3L

SOT-89-3LROHS CompliantActive

TRANS NPN 80V 700mA SOT-89-3L

Manufacturer: JSCJ
Manufacturer part #: 2SD1767
Store part #: C47089411
Package / case: SOT-89-3L
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,240 in stock

#C47089411

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹10.95	₹54.75
50+	₹8.67	₹433.50
150+	₹7.51	₹1,126.50
1,000+	₹6.65	₹6,650.00
2,000+	₹5.97	₹11,940.00
5,000+	₹5.62	₹28,100.00

Quantity (min 5, multiples of 5)

5 × ₹10.95

₹54.75

excl. GST

₹64.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

2SD1767

₹54.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 500nA
Transition frequency(fT): 120MHz
Collector - Emitter Voltage VCEO: 80V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 390
Pd - Power Dissipation: 500mW
Current - Collector(Ic): 700mA
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 400mV

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.156 g
