VBsemi ElecDatasheet (PDF)

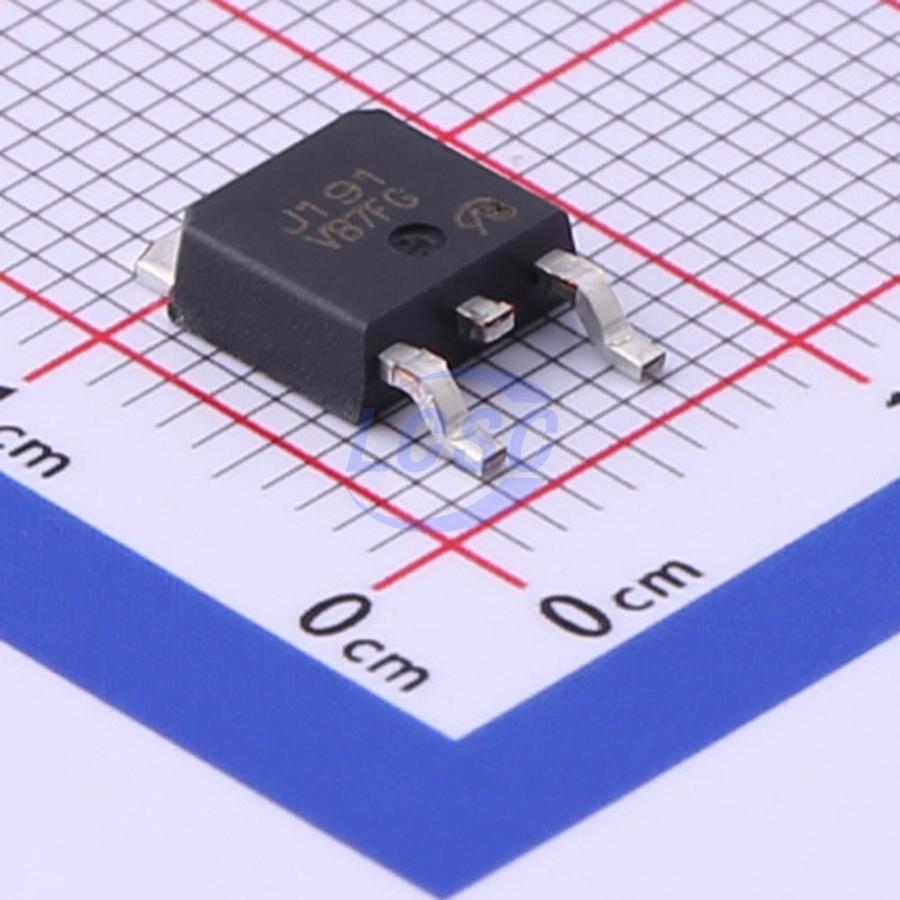

2SJ191-VB
P-Channel 60V 30A 34W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 60V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ191-VB
- Store part #
- C693387
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C693387
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.41 | ₹79.41 |
| 10+ | ₹64.71 | ₹647.10 |
| 30+ | ₹57.14 | ₹1,714.20 |
| 100+ | ₹49.78 | ₹4,978.00 |
| 500+ | ₹42.85 | ₹21,425.00 |
| 1,000+ | ₹40.76 | ₹40,760.00 |
1 × ₹79.41
₹79.41
excl. GST
₹93.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SJ191-VB
₹79.41 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 34W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 72mΩ@4.5V;61mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.373 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% tested for unclamped inductive switching (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MTD2955VLT4G-VB#C22389511VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹75.62 · 15 in stock | View |
 | QM6007D-VB#C29779003VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹75.62 · 20 in stock | View |
 | 2SJ133-VB#C29779142VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 60 | ₹90.35 · 60 in stock | View |
 | IRFR9014NTRPBF-VB#C29779398VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹75.62 · 15 in stock | View |
 | 20P06-VB TO252#C29779538VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹75.62 · 20 in stock | View |
