MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
TECH PUBLICDatasheet (PDF)

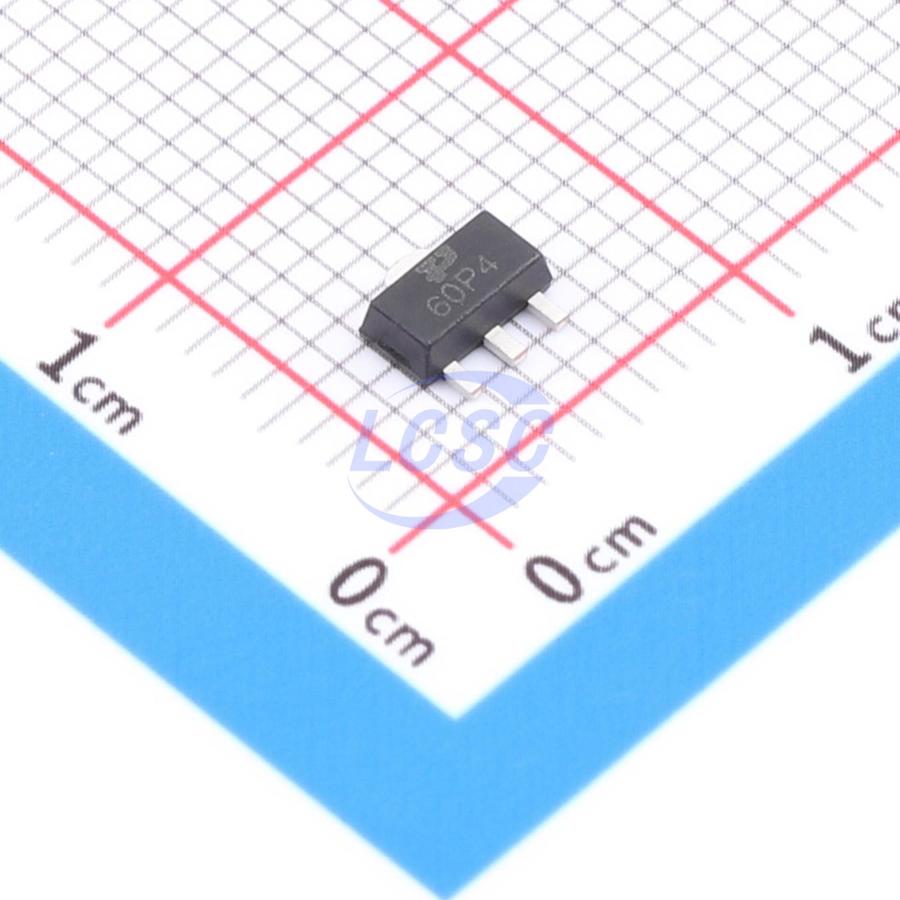

2SJ278-TP
60V 4A 1.6W 88mΩ@10V 1 P-Channel SOT-89-3 Single FETs, MOSFETs RoHS
SOT-89-3ROHS CompliantActive
MOSFET 60V 4A SOT-89-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 2SJ278-TP
- Store part #
- C49332995
- Package / case
- SOT-89-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
685 in stock
#C49332995
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.17 | ₹95.85 |
| 50+ | ₹15.16 | ₹758.00 |
| 150+ | ₹13.15 | ₹1,972.50 |
| 1,000+ | ₹11.64 | ₹11,640.00 |
| 2,000+ | ₹10.44 | ₹20,880.00 |
| 5,000+ | ₹9.84 | ₹49,200.00 |
5 × ₹19.17
₹95.85
excl. GST
₹113.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
2SJ278-TP
₹95.85 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Output Capacitance(Coss)
- 71pF
- Ciss-Input Capacitance
- 1.06nF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 88mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
Applications
- PWM applications - Load switch - Power management
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SJ356-TP#C49333144TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 1,025 | ₹19.17 · 1,025 in stock | View |
 | 2SJ360-TP#C49333145TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 1,410 | ₹19.42 · 1,410 in stock | View |
 | 2SJ518-TP#C49333149TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 125 | ₹19.12 · 125 in stock | View |
 | CEA6861-TP#C49333156TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 665 | ₹28.76 · 665 in stock | View |
 | TPM604PT3#C49333217TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 200 | ₹24.03 · 200 in stock | View |
