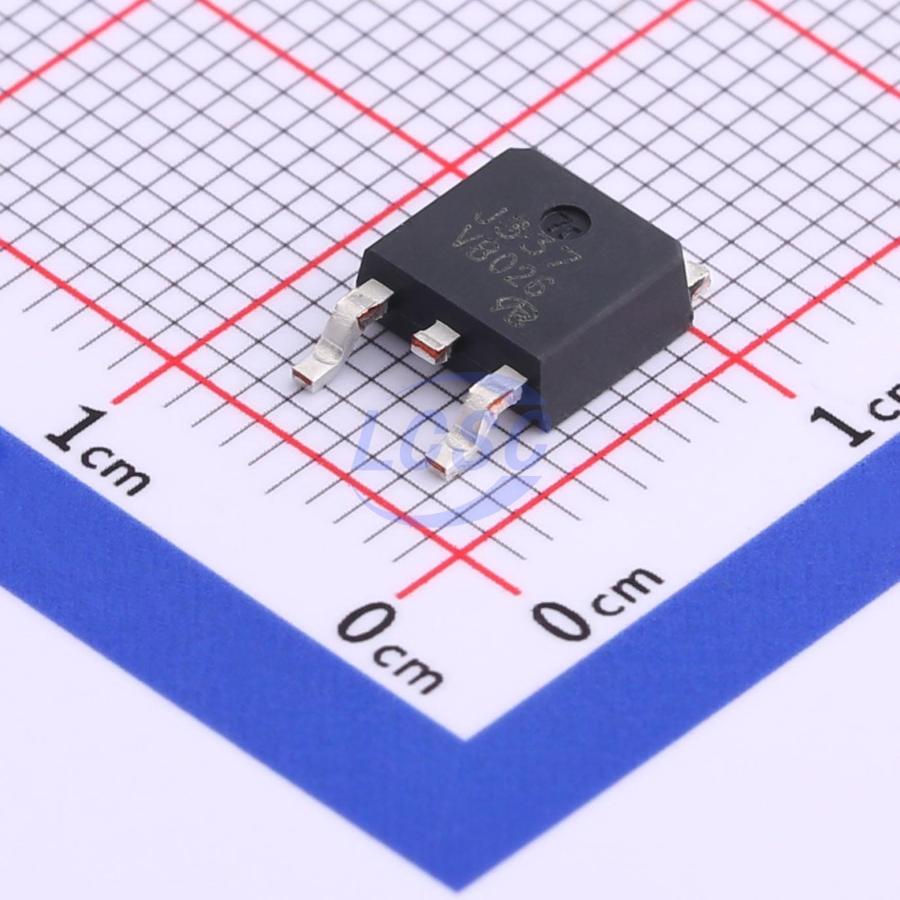

2SJ337-VB
P-Channel 30V 20W Surface Mount TO-252
TO-252RoHSSold out at source
MOSFET P-CH 30V TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ337-VB
- Store part #
- C878926
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C878926
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.71 | ₹64.71 |
| 10+ | ₹51.25 | ₹512.50 |
| 30+ | ₹45.38 | ₹1,361.40 |
| 100+ | ₹38.23 | ₹3,823.00 |
| 500+ | ₹34.87 | ₹17,435.00 |
| 1,000+ | ₹32.98 | ₹32,980.00 |
1 × ₹64.71
₹64.71
excl. GST
₹76.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SJ337-VB
₹64.71 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 255pF
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 20W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 26A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 33mΩ@10V;46mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 27nC@10V;19nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Applications
- Load Switch
- Notebook Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
