VBsemi ElecDatasheet (PDF)

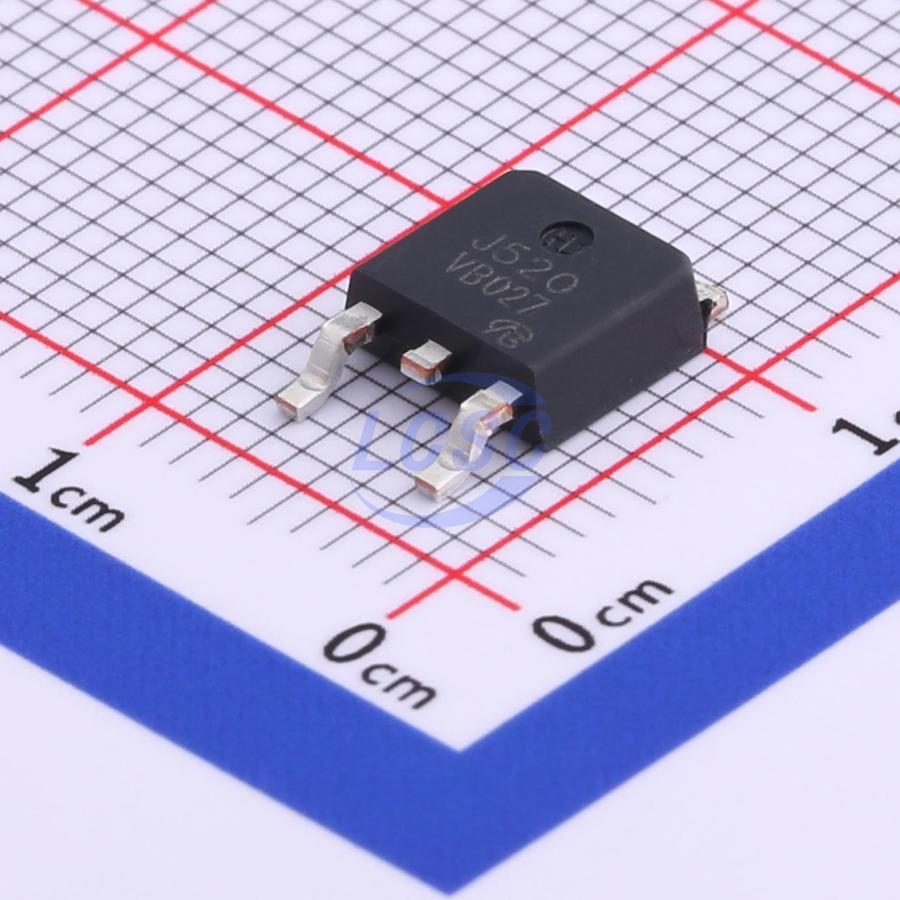

2SJ520-VB
P-Channel 30V 12.9A 2.7W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 30V 12.9A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ520-VB
- Store part #
- C878966
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C878966
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.78 | ₹53.78 |
| 10+ | ₹42.85 | ₹428.50 |
| 30+ | ₹38.23 | ₹1,146.90 |
| 100+ | ₹32.36 | ₹3,236.00 |
| 500+ | ₹28.15 | ₹14,075.00 |
| 1,000+ | ₹26.68 | ₹26,680.00 |
1 × ₹53.78
₹53.78
excl. GST
₹63.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SJ520-VB
₹53.78 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 255pF
- Current - Continuous Drain(Id)
- 12.9A
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 43mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 27nC@10V;19nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.382 g
Overview
Applications
- Load Switch - Notebook Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% Rg tested
- 100% UIS tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SJ383-VB#C879112VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 43 | ₹51.21 · 43 in stock | View |
 | SSD9435-VB#C22389857VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹50.84 · 20 in stock | View |
 | NTD25P03L-VB#C5355742VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹52.10 · 20 in stock | View |
 | P06P03LDG-VB#C18212604VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 48 | ₹53.56 · 48 in stock | View |
 | FX6ASJ-03-VB#C19632199VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹52.93 · 40 in stock | View |
