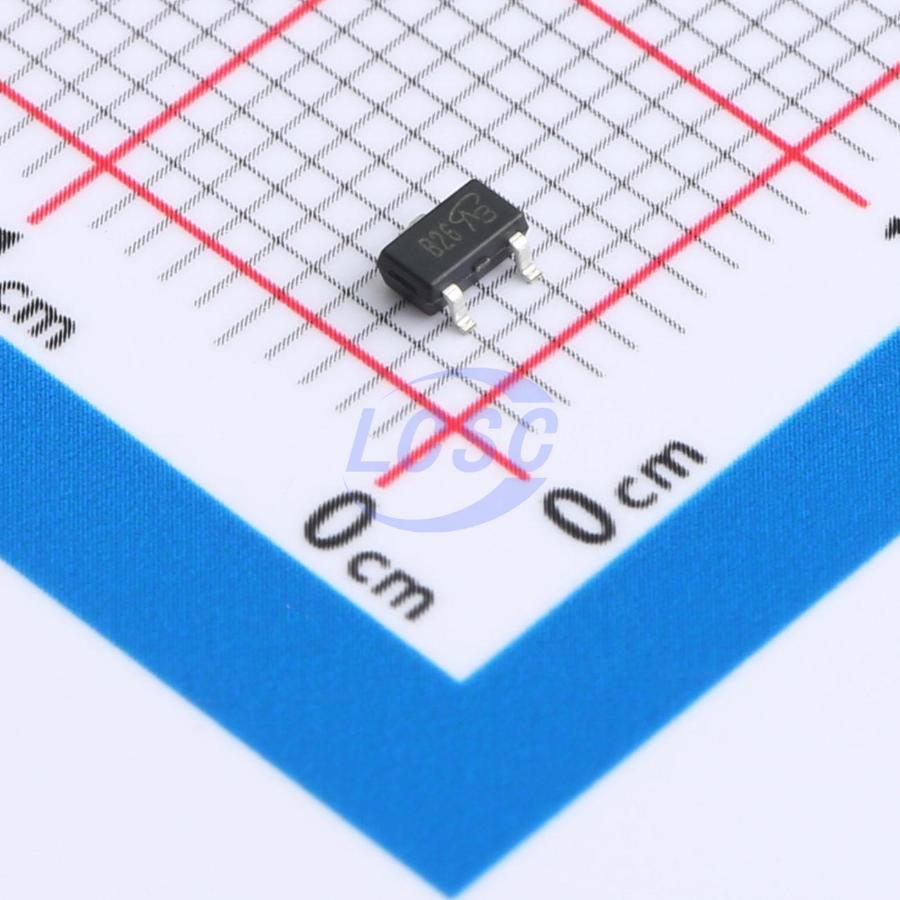

2SJ626-T1B-A-VB
P-Channel 60V 3.8A 27W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)ROHS CompliantActive
MOSFET P-CH 60V 3.8A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ626-T1B-A-VB
- Store part #
- C7525018
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C7525018
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.12 | ₹185.60 |
| 50+ | ₹29.29 | ₹1,464.50 |
| 150+ | ₹25.93 | ₹3,889.50 |
| 500+ | ₹21.74 | ₹10,870.00 |
| 3,000+ | ₹19.24 | ₹57,720.00 |
| 6,000+ | ₹18.11 | ₹1,08,660.00 |
5 × ₹37.12
₹185.60
excl. GST
₹219.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2SJ626-T1B-A-VB
₹185.60 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 170pF
- Current - Continuous Drain(Id)
- 3.8A
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 27W
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Key features
- Isolated Package
- High Voltage Isolation =2.5 kV RMS (t = 60 s, f = 60 Hz)
- Sink to Lead Creepage Distance =4.8 mm
- P-Channel
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN5618P-NL-VB#C20626320VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 55 | ₹37.98 · 55 in stock | View |
 | AM2359PE-T1-PF-VB#C20626322VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 5 | ₹37.98 · 5 in stock | View |
 | AM2359P-T1-PF-VB#C20755036VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 45 | ₹43.92 · 45 in stock | View |
 | AM2361P-T1-PF-VB#C20755220VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹36.49 · 20 in stock | View |
 | CPH3351-TL-H-VB#C22389085VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 85 | ₹54.86 · 85 in stock | View |
