VBsemi ElecDatasheet (PDF)

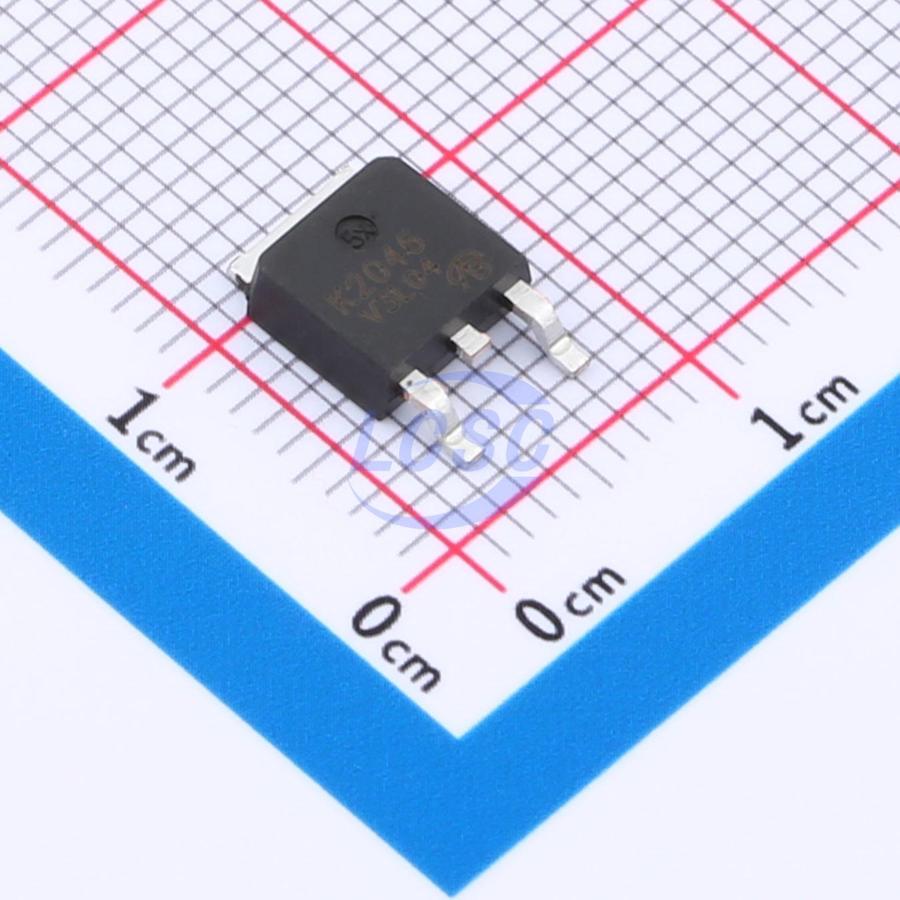

2SK2046-VB
N-Channel 30V 70A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 70A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK2046-VB
- Store part #
- C19711218
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C19711218
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.56 | ₹53.56 |
| 10+ | ₹42.51 | ₹425.10 |
| 30+ | ₹37.84 | ₹1,135.20 |
| 100+ | ₹31.88 | ₹3,188.00 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 1,000+ | ₹27.64 | ₹27,640.00 |
1 × ₹53.56
₹53.56
excl. GST
₹63.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK2046-VB
₹53.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 525pF
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 100W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.354 g
Overview
Applications
- OR gate function - Server - DC-DC conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 4813NHG-VB#C22389454VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹50.84 · 20 in stock | View |
 | 2SK2318-VB#C19190195VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹53.56 · 8 in stock | View |
 | 2SK2084STL-E-VB#C20755711VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹50.84 · 50 in stock | View |
 | 2SK2819-VB#C20755712VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹50.84 · 50 in stock | View |
 | 2SK3365-Z-E1-AZ-VB#C22389386VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 17 | ₹50.84 · 17 in stock | View |
