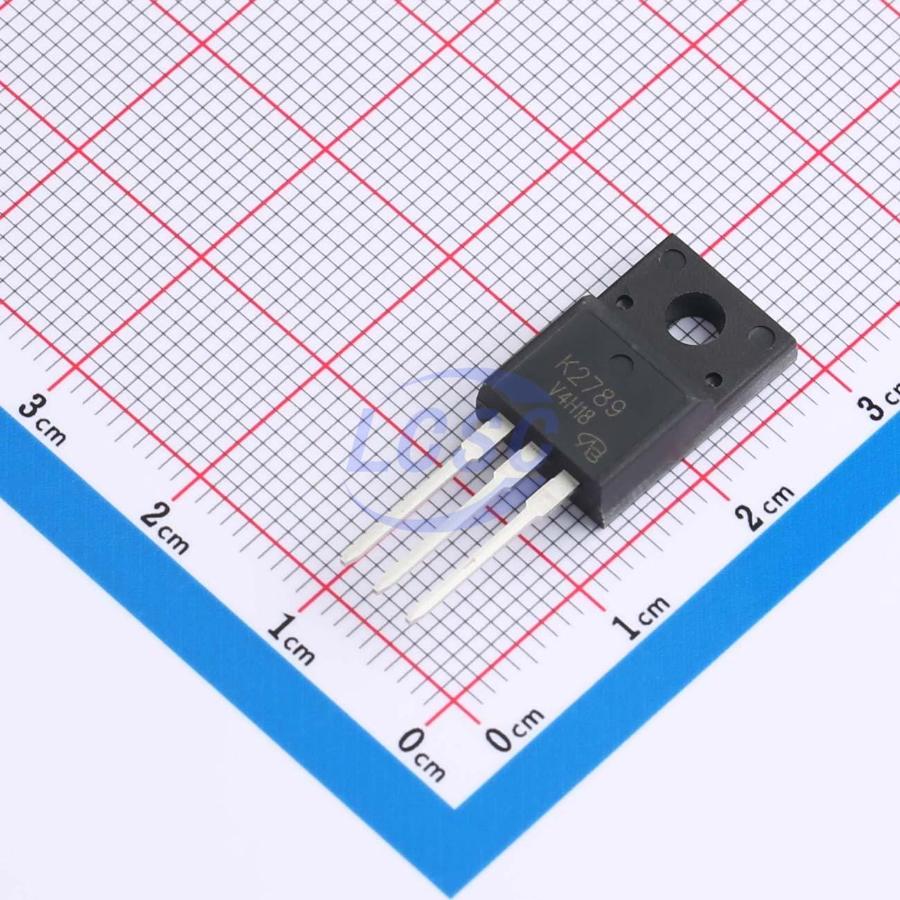

2SK2789-VB
N-Channel 100V 18A 48W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 100V 18A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK2789-VB
- Store part #
- C29779469
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779469
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹66.39 | ₹663.90 |
| 50+ | ₹58.40 | ₹2,920.00 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK2789-VB
₹82.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 560pF
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 48W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 86mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.5 g
Overview
Applications
- Load Switch - Notebook Adapter Switch
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- RoHS compliant
