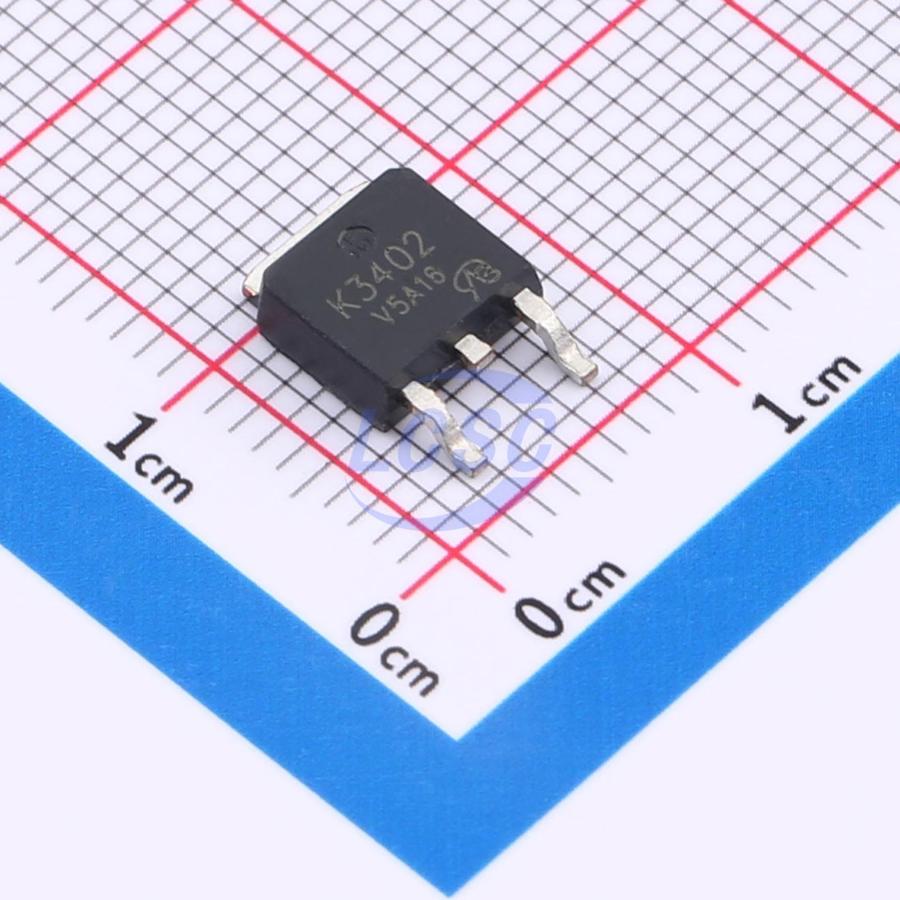

2SK3402-AZ-VB
N-Channel 60V 58A Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3402-AZ-VB
- Store part #
- C45350920
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C45350920
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.25 | ₹116.25 |
| 10+ | ₹99.49 | ₹994.90 |
| 30+ | ₹91.22 | ₹2,736.60 |
| 100+ | ₹82.95 | ₹8,295.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹116.25
₹116.25
excl. GST
₹137.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK3402-AZ-VB
₹116.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 470pF
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 58A
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 13mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.63 g
Overview
Applications
- Switching Mode Power Supply (SMPS) - Uninterruptible Power Supply - High-speed power switching - Hard switching and high-frequency circuits
Key features
- Junction temperature 175 °C
- TrenchFET power MOSFET
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AUIRFR3806-VB#C45350924VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
 | BUK7219-55A-VB#C45350928VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
 | DMNH6021SK3Q-13-VB#C45350931VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
 | FDD86580-F085-VB#C45350938VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
 | NP52N06SLG-VB#C22389495VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹98.62 · 20 in stock | View |
