VBsemi ElecDatasheet (PDF)

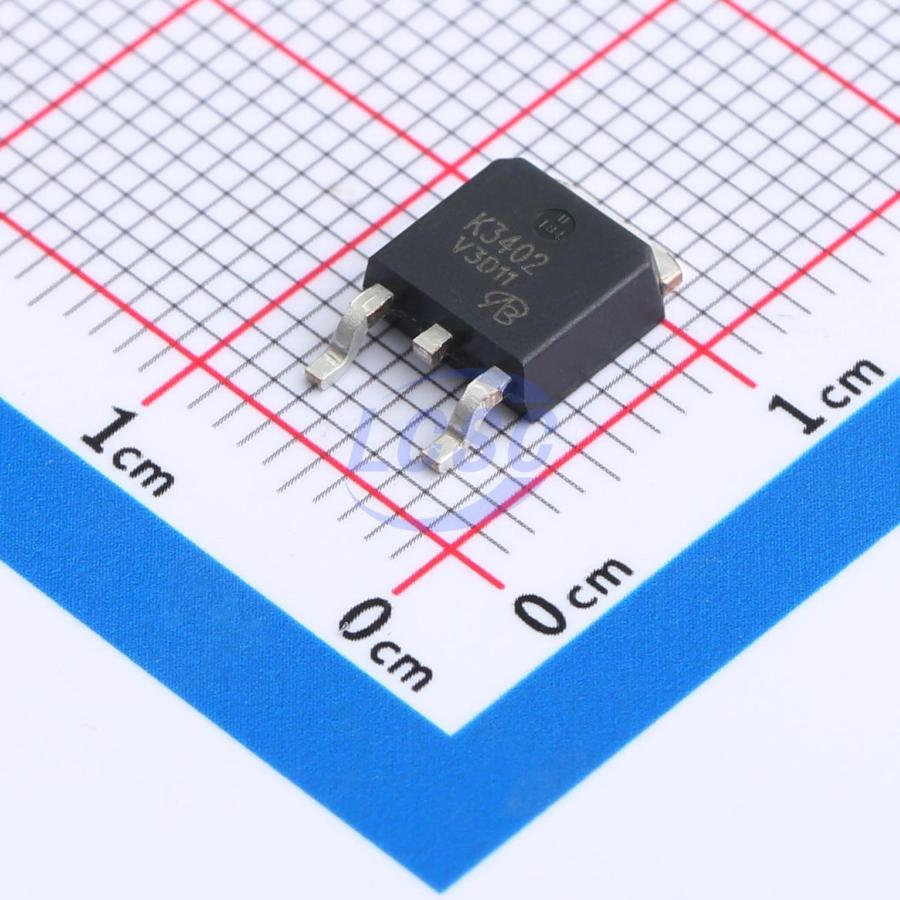

2SK3402-Z-E1-AZ-VB
N-Channel 60V 58A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3402-Z-E1-AZ-VB
- Store part #
- C7494598
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7494598
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.92 | ₹86.92 |
| 10+ | ₹70.56 | ₹705.60 |
| 30+ | ₹62.49 | ₹1,874.70 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.52 | ₹24,760.00 |
| 1,000+ | ₹47.18 | ₹47,180.00 |
1 × ₹86.92
₹86.92
excl. GST
₹102.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK3402-Z-E1-AZ-VB
₹86.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 470pF
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 58A
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.387 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3225-Z-E2-VB#C20755449VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹85.92 · 45 in stock | View |
 | 2SK2940-VB#C22389894VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹82.56 · 20 in stock | View |
 | HM50N06KA-VB#C29778819VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹82.56 · 20 in stock | View |
 | IPD50N06S3-07-VB#C29778835VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹82.56 · 20 in stock | View |
 | IRLR3915TRPBF-VB#C29778850VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹82.56 · 20 in stock | View |
