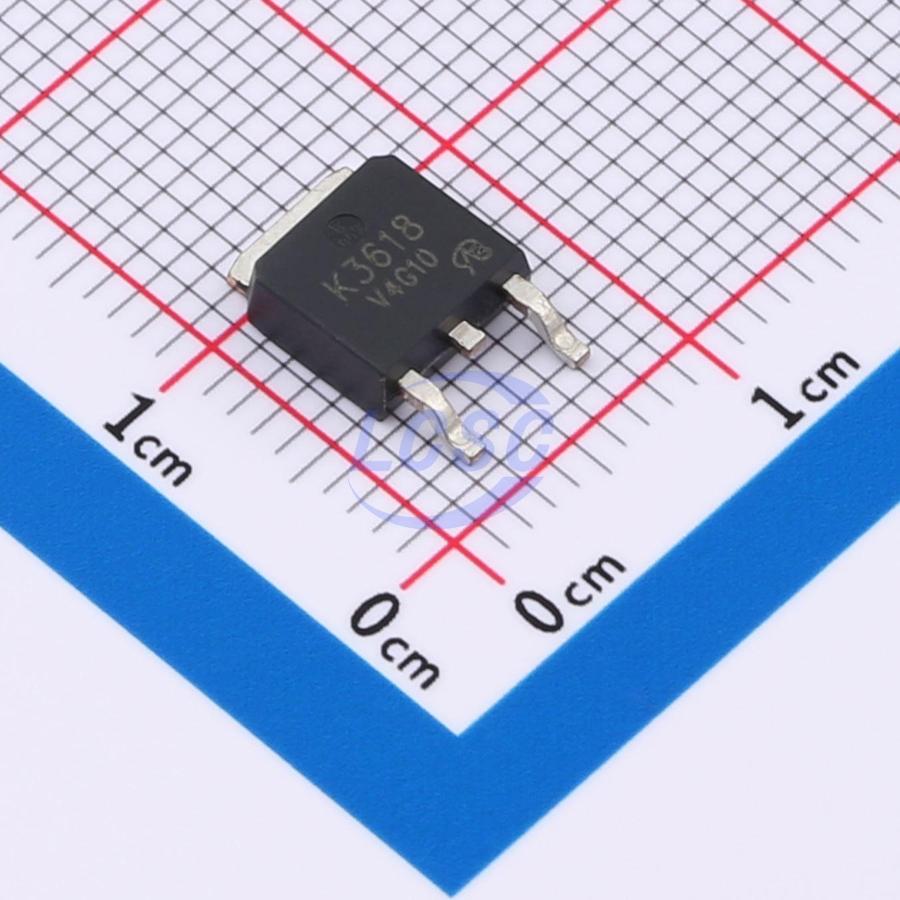

2SK3618-TL-E-VB
N-Channel 100V 15A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 15A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3618-TL-E-VB
- Store part #
- C29778773
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29778773
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.75 | ₹65.75 |
| 10+ | ₹51.68 | ₹516.80 |
| 30+ | ₹45.59 | ₹1,367.70 |
| 100+ | ₹38.02 | ₹3,802.00 |
| 500+ | ₹34.66 | ₹17,330.00 |
| 1,000+ | ₹32.56 | ₹32,560.00 |
1 × ₹65.75
₹65.75
excl. GST
₹77.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK3618-TL-E-VB
₹65.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 96W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 114mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 150°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3147STL-E-VB#C18212506VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹65.75 · 1 in stock | View |
 | 2SK1254S-VB#C20755027VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 240 | ₹65.75 · 240 in stock | View |
 | FS10ASJ-2-VB#C22389724VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹70.54 · 20 in stock | View |
 | 2SK429-VB#C29779155VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹65.75 · 20 in stock | View |
 | STD16N10LT4-VB#C29779202VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹65.75 · 20 in stock | View |
