VBsemi ElecDatasheet (PDF)

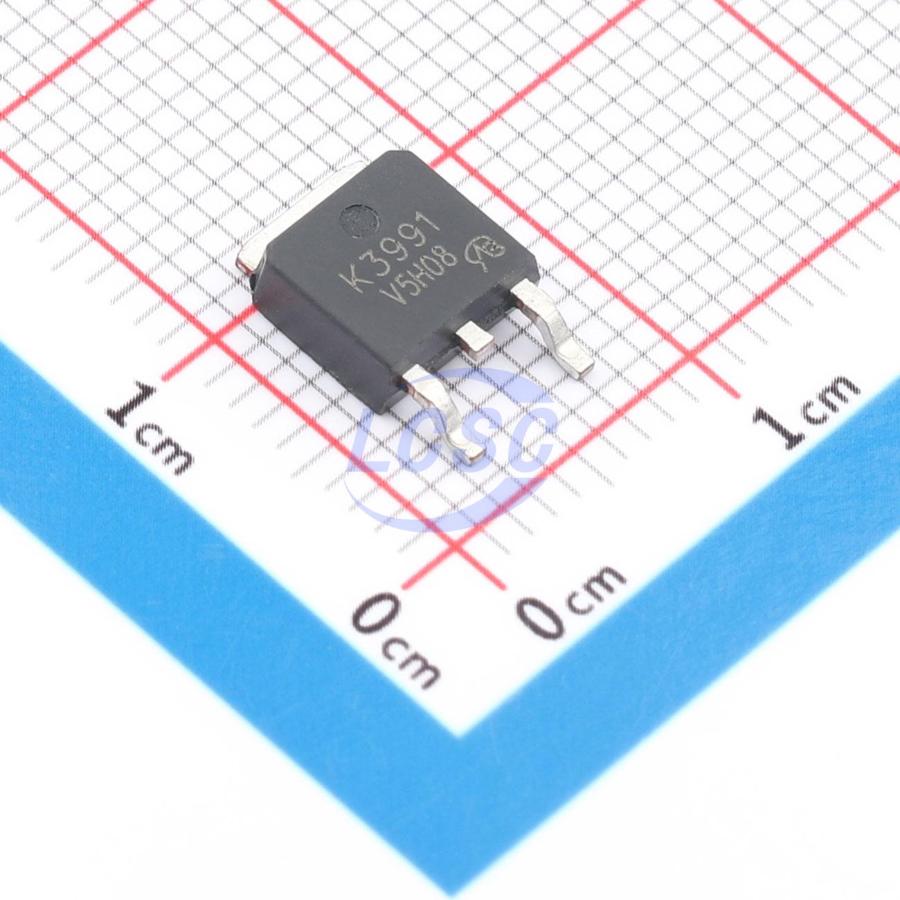

2SK3991-ZK-VB
30V 70A 100W 1 N-channel N-Channel TO-252 Single FETs, MOSFETs
TO-252RoHSActive
MOSFET N-CH 30V 70A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3991-ZK-VB
- Store part #
- C50387059
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C50387059
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.59 | ₹52.59 |
| 10+ | ₹41.29 | ₹412.90 |
| 30+ | ₹36.51 | ₹1,095.30 |
| 100+ | ₹30.43 | ₹3,043.00 |
| 500+ | ₹27.82 | ₹13,910.00 |
| 1,000+ | ₹26.08 | ₹26,080.00 |
1 × ₹52.59
₹52.59
excl. GST
₹62.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SK3991-ZK-VB
₹52.59 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V;25nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
Applications
- OR-ing
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK2318-VB#C19190195VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹53.56 · 8 in stock | View |
 | NTD20N03L27G-VB#C19711343VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 28 | ₹67.92 · 28 in stock | View |
 | AP20T03GH-VB#C20755459VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 37 | ₹52.93 · 37 in stock | View |
 | HY1403D-VB#C20755514VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹52.59 · 1 in stock | View |
 | T23N03-VB TO252#C20755608VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹52.93 · 50 in stock | View |
