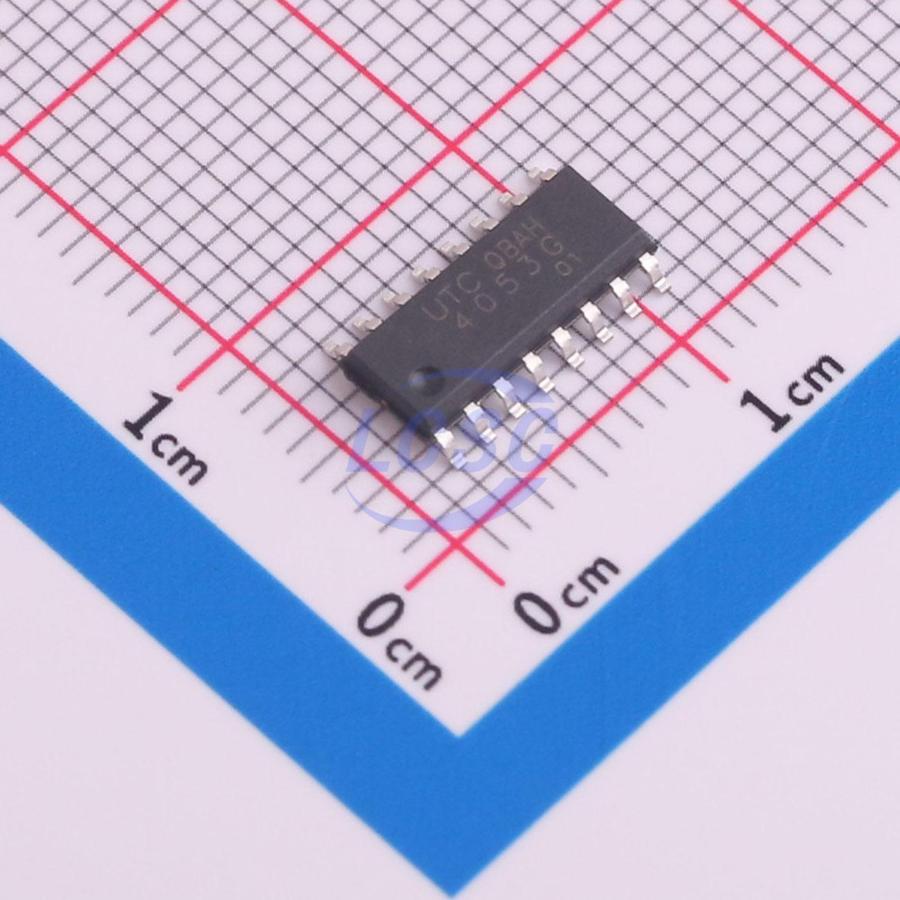

UTC

4053G-S16-R

3 250Ω 3V~18V SOP-16 Analog Switches, Multiplexers, Demultiplexers

SOP-16RoHSActive

CMOS IC Triple 2-Channel Analog Multiplexers/Demultiplexers

Manufacturer: UTC
Manufacturer part #: 4053G-S16-R
Store part #: C5310360
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,065 in stock

#C5310360

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
5+	₹21.66	₹108.30
50+	₹17.12	₹856.00
150+	₹15.17	₹2,275.50
500+	₹12.75	₹6,375.00
2,500+	₹11.67	₹29,175.00
5,000+	₹11.02	₹55,100.00

Quantity (min 5, multiples of 5)

5 × ₹21.66

₹108.30

excl. GST

₹127.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

4053G-S16-R

₹108.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+125℃
Number of Channels: 3
Ron: 250Ω
Voltage - Supply: 3V~18V
Propagation Delay: 25ns
Con: 10pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.3 g

Overview

UTC 4053 is triple 2-channel analog multiplexers/demultiplexers for application as digitally–controlled analog switches. The device has three separate digital control inputs and an inhibit input. It feature low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.

Key features

Wide Analog Voltage Range: VDD - VEE = 3V ~ 18V.
Break-Before-Make Switching Eliminates Channel Overlap.
Linearized Transfer Characteristics
Implement an SPDT Switch Effectively.
Pin to Pin Replacement for CD4053
