VBsemi ElecDatasheet (PDF)

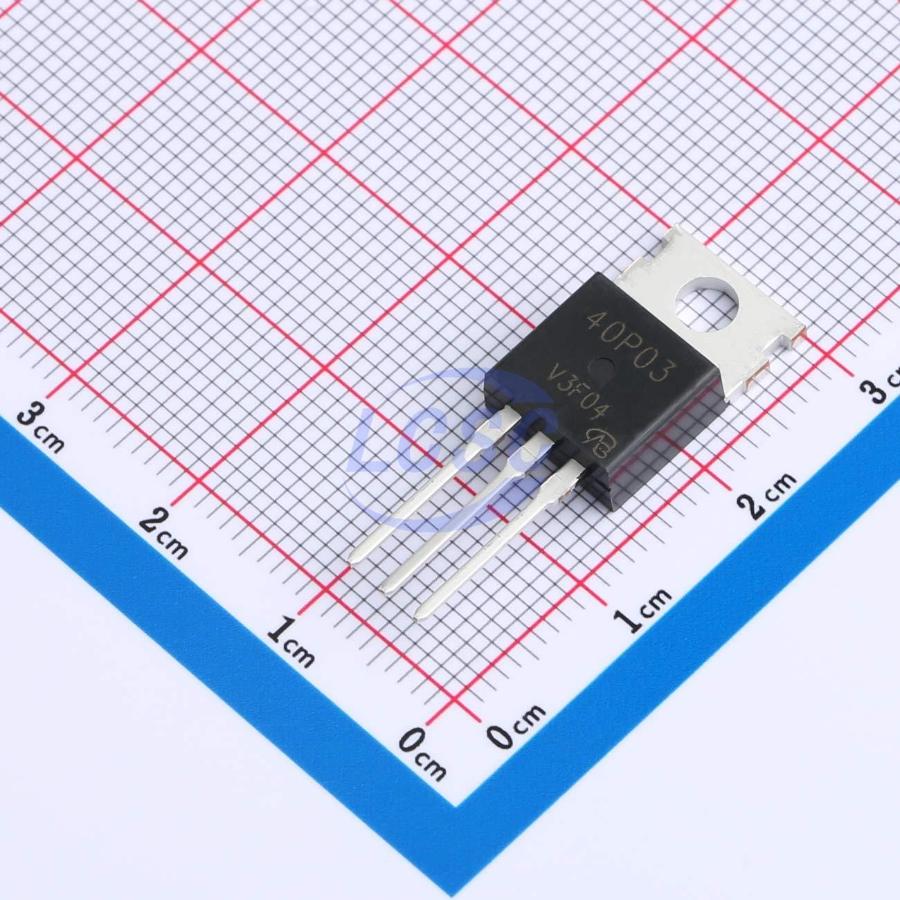

40P03 CMP40P03-VB
P-Channel 30V 70A 50W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 30V 70A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 40P03 CMP40P03-VB
- Store part #
- C19188156
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C19188156
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.16 | ₹101.16 |
| 10+ | ₹82.25 | ₹822.50 |
| 50+ | ₹72.69 | ₹3,634.50 |
| 100+ | ₹63.33 | ₹6,333.00 |
| 500+ | ₹57.82 | ₹28,910.00 |
| 1,000+ | ₹54.84 | ₹54,840.00 |
1 × ₹101.16
₹101.16
excl. GST
₹119.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
40P03 CMP40P03-VB
₹101.16 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 455pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 3.95nF
- Pd - Power Dissipation
- 50W
- RDS(on)
- 11mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.94 g
Overview
Applications
- Load Switch
- Notebook Adaptor Switch
Key features
- Halogen-free TrenchFET Power MOSFET
- 100 % Rg Tested
- 100 % UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 40P03GP-VB#C22389635VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹96.00 · 10 in stock | View |
 | P2003ETG-VB#C29779164VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹96.00 · 10 in stock | View |
 | NDP6020P-VB#C878814VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 39 | ₹126.92 · 39 in stock | View |
 | AP6679BGP-HF-VB#C29778910VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹96.00 · 10 in stock | View |
 | SQP50P03-07-GE3-VB#C7463590VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹101.67 · 18 in stock | View |
