MOLEXDatasheet (PDF)
430250200

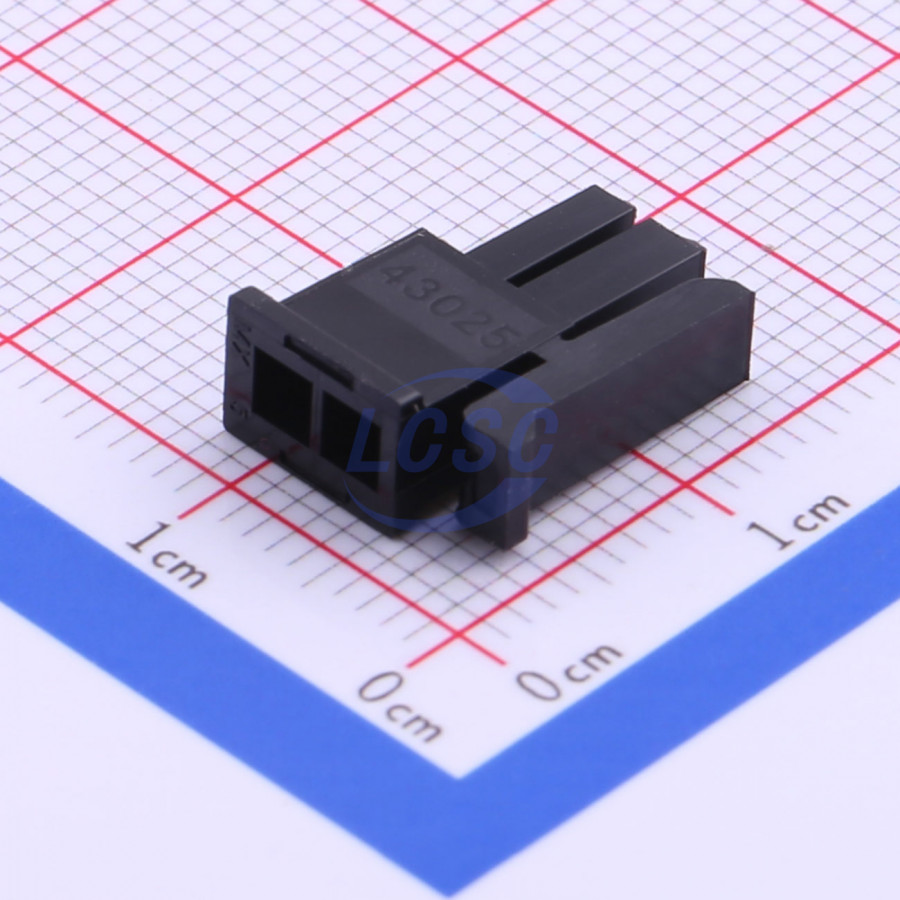

Connector Housing 2 Position 3mm Pitch Dual Row Micro-Fit(MX 3.0) Series -40℃~+105℃
PopularP=3mmROHS3 CompliantActive
CONN HOUSING 2POS 3mm DUAL ROW Micro-Fit(MX 3.0)
- Manufacturer
- MOLEX
- Manufacturer part #
- 430250200
- Store part #
- C293523
- Package / case
- P=3mm
- Category
- Rectangular Connector Housings
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67,930 in stock
#C293523
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.64 | ₹116.40 |
| 100+ | ₹9.63 | ₹963.00 |
| 300+ | ₹8.64 | ₹2,592.00 |
| 1,000+ | ₹7.89 | ₹7,890.00 |
| 5,000+ | ₹7.28 | ₹36,400.00 |
| 10,000+ | ₹6.99 | ₹69,900.00 |
10 × ₹11.64
₹116.40
excl. GST
₹137.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per box
430250200
₹116.40 for 10 + GST
Specifications
- Pitch
- 3mm
- Row Spacing
- 3mm
- Flame Retardant Rating
- UL94V-0
- Number of Rows
- 2
- With Wings
- Without Fins
- Operating Temperature
- -40℃~+105℃
- Reference Series
- Micro-Fit(MX 3.0)
- Holes Structure
- 2x1P
- Color
- Black
- Plastic Material
- PA
- Number of PINs Per Row
- 1
- With Locker
- Locking
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 5,000 / Box
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.356 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 43025-2Y#C22383235DLL · P=3mm | DLL | P=3mm | 3,260 | ₹3.59 · 3,260 in stock | View |
 | HC-MX3.0-2*1Y#C3294358HCTL · P=3mm | HCTL | P=3mm | 3,300 | ₹5.57 · 3,300 in stock | View |
 | C300E12-B2P12#C47326903JXTCONN · P=3mm | JXTCONN | P=3mm | 400 | ₹2.42 · 400 in stock | View |
 | ZJLQ-2x1Y43025#C55547756Lingqiang · P=3mm | Lingqiang | P=3mm | 1,000 | ₹6.11 · 1,000 in stock | View |
