FMDatasheet (PDF)

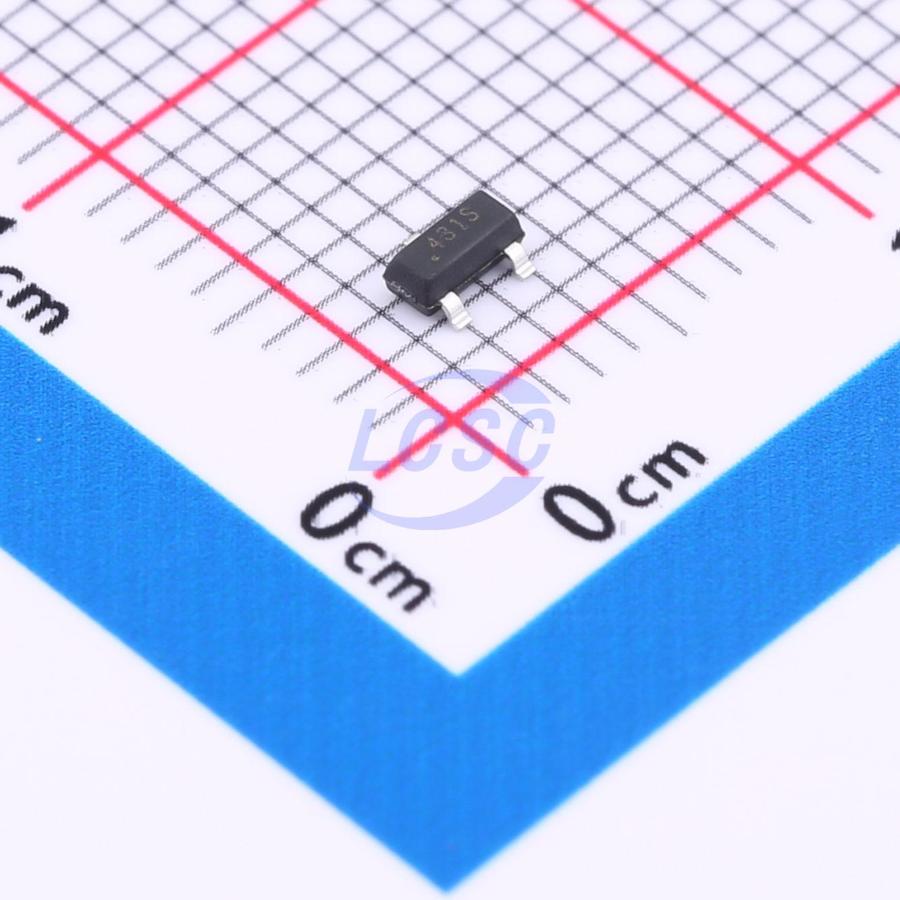

431S
2.5V~40V ±0.48% 2.5V~40V 100mA Adjustable SOT-23-3 Voltage Reference RoHS
SOT-23-3ROHS CompliantActive
PROGRAMMABLE PRECISION REFERENCES
- Manufacturer
- FM
- Manufacturer part #
- 431S
- Store part #
- C19630716
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,900 in stock
#C19630716
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.47 | ₹89.40 |
| 200+ | ₹3.48 | ₹696.00 |
| 600+ | ₹2.94 | ₹1,764.00 |
| 2,000+ | ₹2.61 | ₹5,220.00 |
| 10,000+ | ₹2.32 | ₹23,200.00 |
| 20,000+ | ₹2.17 | ₹43,400.00 |
20 × ₹4.47
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
431S
₹89.40 for 20 + GST
Specifications
- Output Voltage
- 2.5V~40V
- Tolerance
- ±0.48%
- Voltage - Supply
- 2.5V~40V
- Minimum Cathode Current for Regulation
- 100uA
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
The 431S is a three-terminal adjustable regulator series with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref (approximately 2.5 volts) and 40 volts with two external resistors. These devices have a typical dynamic output impedance of 0.26. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacement for zener diodes in many applications. The 431S is characterized for operation from (-40 to +125℃).
Key features
- Programmable Output Voltage to 40V
- Low Dynamic Output Impedance 0.26(Typ)
- Sink Current Capability of 100μA to 100mA
- Equivalent Full-Range Temperature Coefficient of (50ppm/°C)*
- Temperature Compensated for Operation over Full Rated Operating Temperature Range
- Low Output Noise Voltage
- ESD 2000V
- Fast Turn on Respons
- Available in TO-92, SOP - 8, SOT-89 or SOT-23-3 packages
