JSCJDatasheet (PDF)

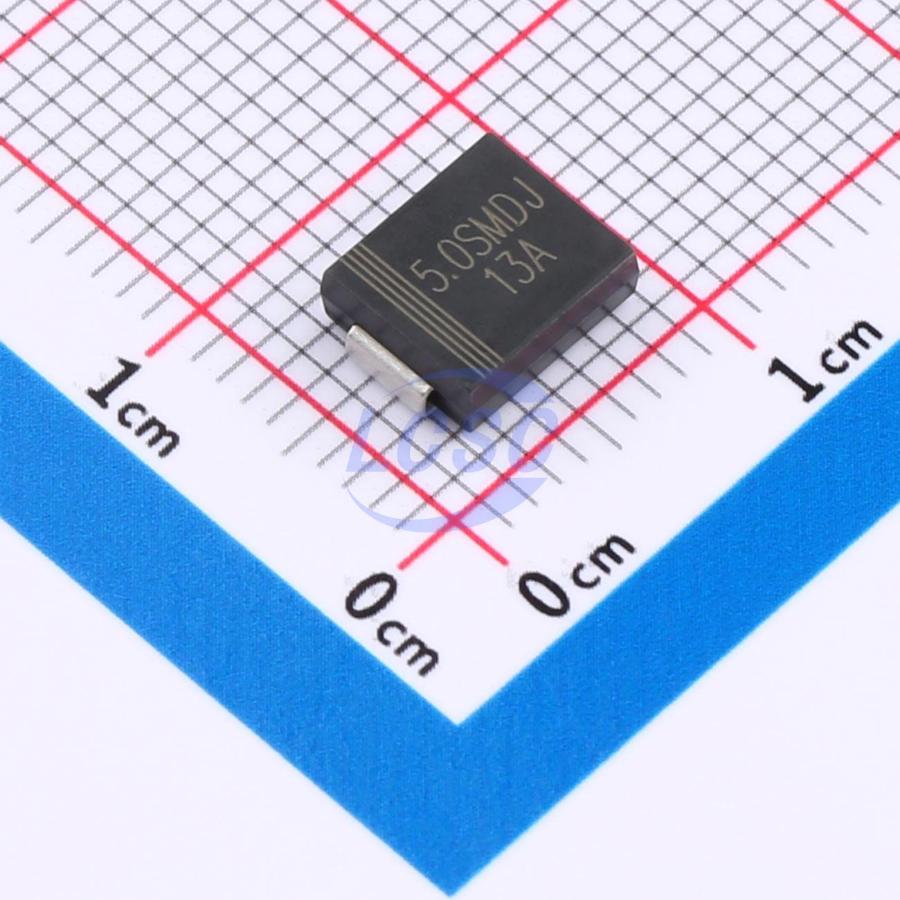

5.0SMDJ13A
21.5VC Clamp 232.6A Ipp TVS DIODE SMCG
SMCGROHS CompliantSold out at source
TVS DIODE 13VWM 21.5VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- 5.0SMDJ13A
- Store part #
- C5295091
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,418 in stock
#C5295091
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.96 | ₹84.96 |
| 10+ | ₹68.45 | ₹684.50 |
| 30+ | ₹60.20 | ₹1,806.00 |
| 100+ | ₹51.94 | ₹5,194.00 |
| 500+ | ₹46.94 | ₹23,470.00 |
| 1,000+ | ₹44.56 | ₹44,560.00 |
1 × ₹84.96
₹84.96
excl. GST
₹100.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ13A
₹84.96 for 1 + GST
Specifications
- Clamping Voltage
- 21.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 232.6A
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 14.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500uA
- Reverse Stand-Off Voltage (Vrwm)
- 13V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.371 g
