YFWDatasheet (PDF)

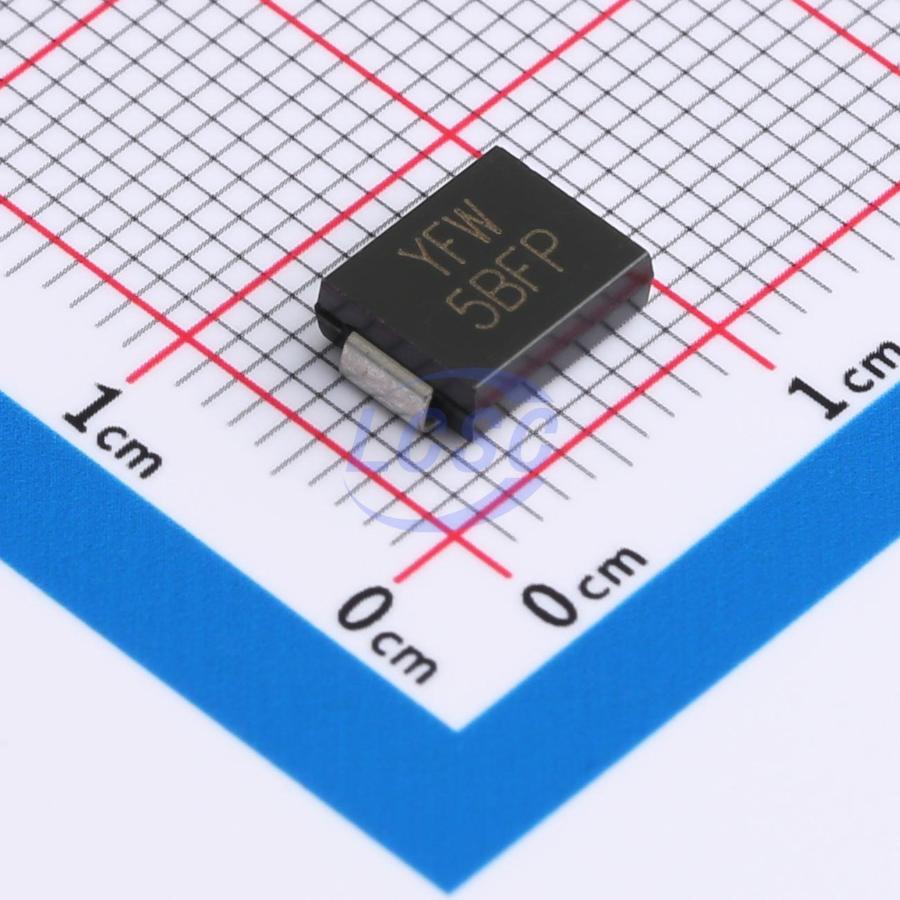

5.0SMDJ36CA
58.1VC Clamp 86.1A Ipp TVS DIODE DO-214AB(SMC)
DO-214AB(SMC)ROHS CompliantActive
TVS DIODE 36VWM 58.1VC DO-214AB(SMC)
- Manufacturer
- YFW
- Manufacturer part #
- 5.0SMDJ36CA
- Store part #
- C5270680
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
802 in stock
#C5270680
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.50 | ₹52.50 |
| 10+ | ₹45.78 | ₹457.80 |
| 30+ | ₹42.96 | ₹1,288.80 |
| 100+ | ₹39.49 | ₹3,949.00 |
| 500+ | ₹38.83 | ₹19,415.00 |
| 850+ | ₹37.75 | ₹32,087.50 |
1 × ₹52.50
₹52.50
excl. GST
₹61.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
5.0SMDJ36CA
₹52.50 for 1 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 86.1A
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
