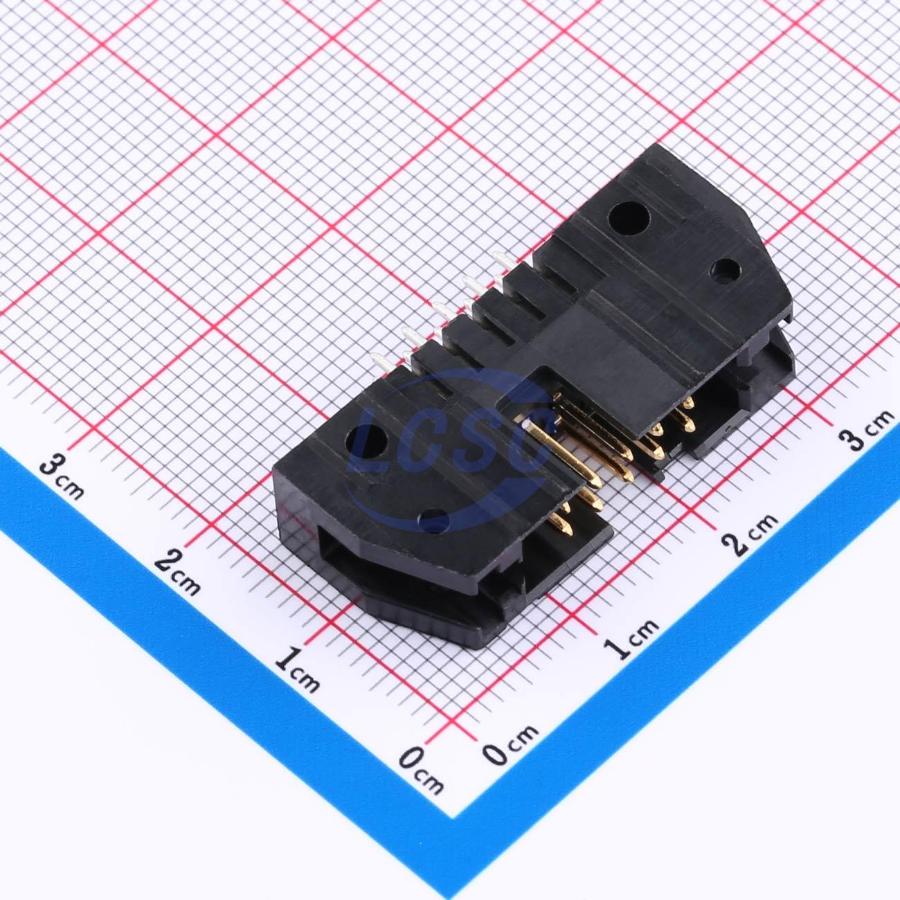

TE Connectivity

5102154-1

Connector Header 2.54mm Pitch 1A Through Hole -65℃~+105℃

Through Hole,P=2.54mmROHS3 CompliantActive

CONN HEADER TH 2.54mm

Manufacturer: TE Connectivity
Manufacturer part #: 5102154-1
Store part #: C591556
Package / case: Through Hole,P=2.54mm
Category: Headers, Male Pins
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C591556

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹252.28	₹252.28
10+	₹246.42	₹2,464.20
30+	₹242.73	₹7,281.90
100+	₹238.81	₹23,881.00

Quantity (min 1)

1 × ₹252.28

₹252.28

excl. GST

₹297.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 90 per tray

5102154-1

₹252.28 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type: Through Hole
Voltage Rating (Max): 250V
Contact Material: Phosphor bronze
Number of PINs Per Row: 5
Number of Rows: 2
Pitch: 2.54mm
Flame Retardant Rating: UL94V-0
Current Rating: 1A
Number of PINs: 10P
Contact Plating: Tin
Operating Temperature: -65℃~+105℃
Plastic Material: Glass fiber reinforced PA
Color: Black
X-Length of Bottom Edge on Board (Spacing Line): 32mm
Pin Structure: 2x5P
Row Spacing: 2.54mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 90 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 3.62 g

Overview

Coordinate dimensions apply to basic positions. The 10-pin and 14-pin configurations contain only one slot for a snap-in polarizer (polarization), located as shown. The 10-pin configuration contains only one slot for dual polarization, located as shown. Recommended PCB thickness is 1.57 [.062]. Materials — Housing: glass-filled nylon or polyester, UL94V-0 rated, color per table. Contacts: phosphor bronze or brass. Finish — Contacts: gold flash over palladium nickel, minimum total thickness 0.76μm [.000030] over selective plated area, minimum tin 2.54μm [.000100] on contact tails, minimum nickel underplate 1.27μm [.000050] over entire contact; or minimum gold 0.76μm [.000030] over selective plated area, minimum tin 2.54μm [.000100] on contact tails, minimum nickel underplate 1.27μm [.000050] over entire contact. Datums "M" and "N" are determined by the customer.
