MOLEXDatasheet (PDF)

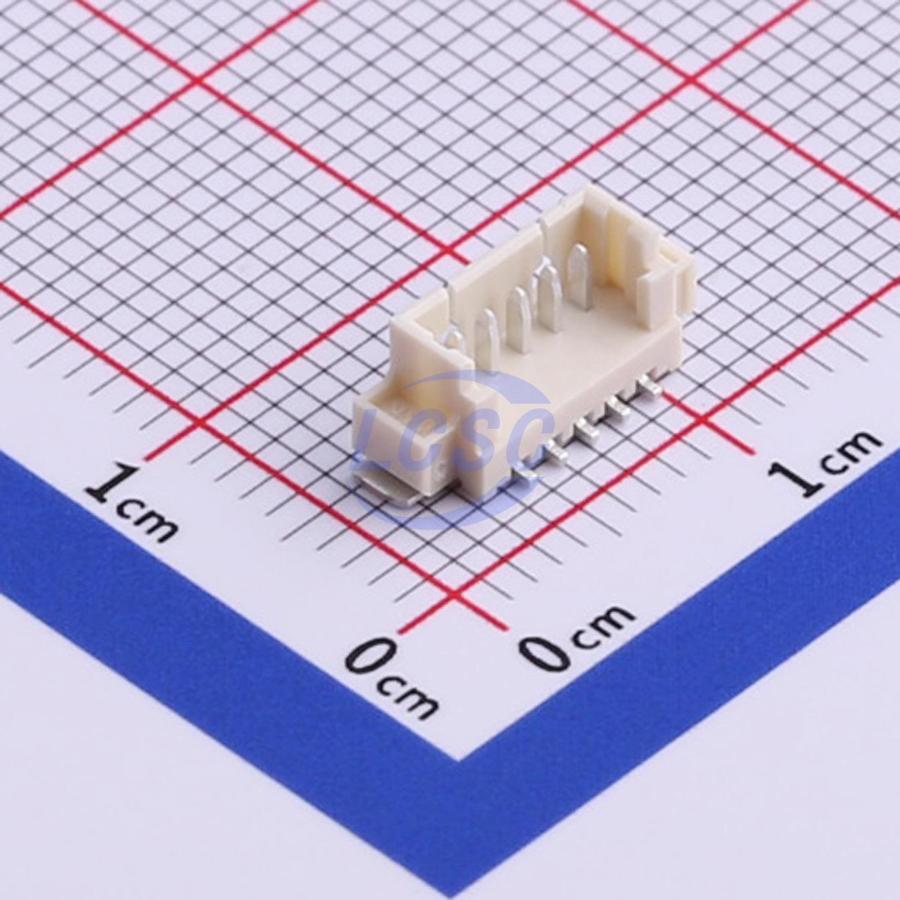

533980571
Connector Header 5 position 1.25mm Pitch 1A Surface Mount,Vertical -40℃~+105℃
PopularSMD,P=1.25mmROHS3 CompliantActive
CONN HEADER SMD 5POS 1.25mm
- Manufacturer
- MOLEX
- Manufacturer part #
- 533980571
- Store part #
- C504986
- Package / case
- SMD,P=1.25mm
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,125 in stock
#C504986
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.75 | ₹128.75 |
| 50+ | ₹21.64 | ₹1,082.00 |
| 150+ | ₹19.58 | ₹2,937.00 |
| 1,400+ | ₹17.54 | ₹24,556.00 |
| 2,800+ | ₹16.31 | ₹45,668.00 |
| 5,600+ | ₹15.69 | ₹87,864.00 |
5 × ₹25.75
₹128.75
excl. GST
₹151.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,400 per reel
533980571
₹128.75 for 5 + GST
Specifications
- Connector Type
- Surface Mount,Vertical
- Reference Series
- PicoBlade(MX 1.25)
- Voltage Rating (Max)
- 125V
- Contact Material
- Phosphor bronze
- Number of PINs Per Row
- 5
- Number of Rows
- 1
- Pitch
- 1.25mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 1A
- Supplementary Features
- Auxiliary Solder Pin
- Contact Plating
- Tin
- Number of PINs
- 5P
- Operating Temperature
- -40℃~+105℃
- Plastic Material
- Glass fiber reinforced PA
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 11.4mm
- Pin Structure
- 1x5P
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,400 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.558 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 533984005#C17603290MOLEX · SMD,P=1.25mm | MOLEX | SMD,P=1.25mm | 97 | ₹220.57 · 97 in stock | View | |
 | MX1.25-5PLT#C52037380XUNPU · SMD,P=1.25mm | XUNPU | SMD,P=1.25mm | 675 | ₹10.36 · 675 in stock | View |
 | JXT-MX1.25-5PLT#C52204909JXTCONN · SMD,P=1.25mm | JXTCONN | SMD,P=1.25mm | 1,330 | ₹7.41 · 1,330 in stock | View |
 | 1.25K-BH-5PB#C2919583HDGC · SMD,P=1.25mm | HDGC | SMD,P=1.25mm | 1,540 | ₹8.59 · 1,540 in stock | View |
 | HDGC1251WV-S-5P#C3041150HDGC · SMD,P=1.25mm | HDGC | SMD,P=1.25mm | 70 | ₹8.65 · 70 in stock | View |
